ICS 5000 - High-pressure-tight exhaust system for industry
Extreme pressure resistance & tested fire safety

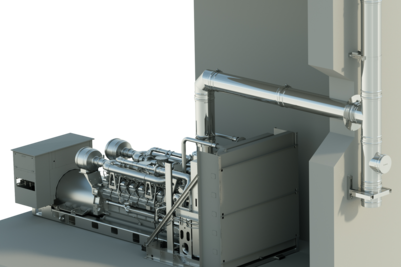

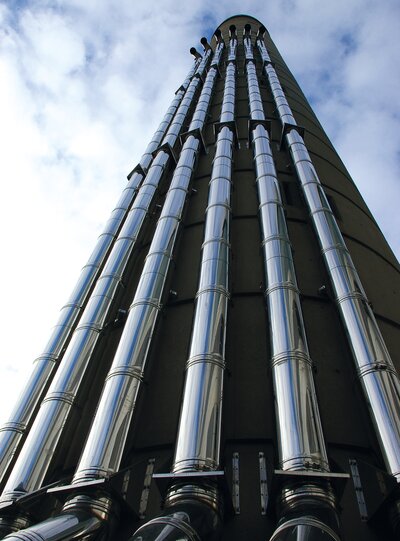

The Schiedel ICS 5000 is a modular, double-walled stainless steel system engineered for demanding industrial processes, emergency power generators, combined heat and power plants (CHP), and large boiler systems.
Designed with continuous butt-welded inner and outer shells, the system features factory-fitted high-temperature lip seals to ensure gas tightness up to 5000 Pa. Its pre-insulated construction eliminates thermal bridging and maintains low outer surface temperatures. Additionally, it holds certified EI 120 fire resistance according to EN 1366-13 for horizontal and vertical installations.
Quicklinks
5000 Pa high-pressure certification
Factory-integrated high-temperature lip seals combined with a profiled socket joint guarantee total gas tightness under severe overpressure conditions up to 5000 Pa.
Factory-integrated high-temperature lip seals combined with a profiled socket joint guarantee total gas tightness under severe overpressure conditions up to 5000 Pa.

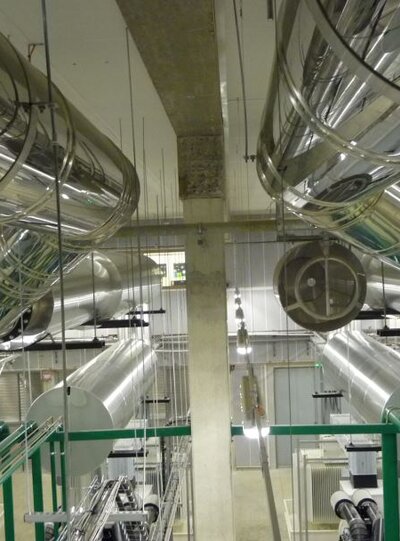

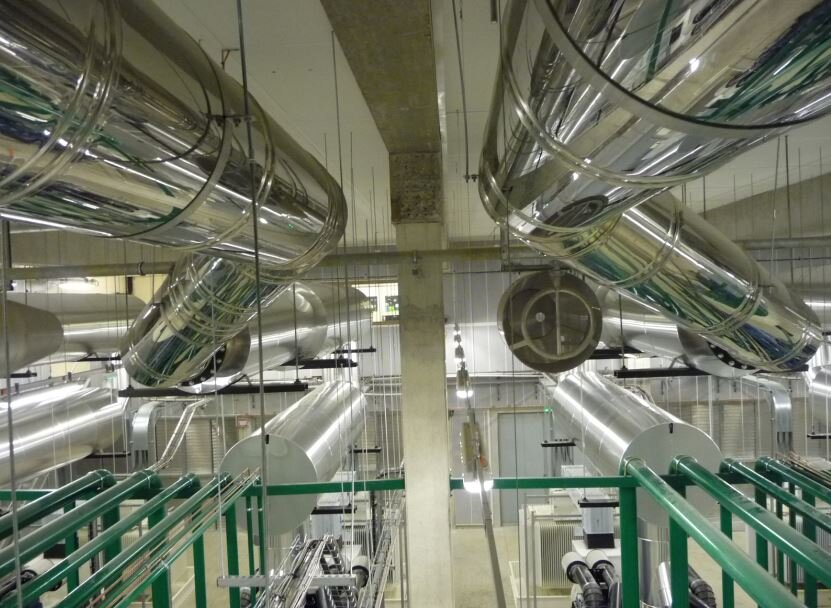

Certified EI 120 fire resistance
Successfully tested under EN 1366-13:2019, achieving an EI 120 fire resistance classification for both horizontal and vertical installation scenarios.
Successfully tested under EN 1366-13:2019, achieving an EI 120 fire resistance classification for both horizontal and vertical installation scenarios.
Uncompensated thermal expansion
The inner stainless steel column expands freely without thermal stress, eliminating the need for complex axial expansion joints (compensators).
The inner stainless steel column expands freely without thermal stress, eliminating the need for complex axial expansion joints (compensators).
Continuous insulation & high-temp rating
Rated for continuous flue gas operating temperatures up to 600°C and tested up to 1000°C. Available with 25 mm, 50 mm, 75 mm, or 100 mm mineral insulation to meet specific clearance and thermal requirements.
Rated for continuous flue gas operating temperatures up to 600°C and tested up to 1000°C. Available with 25 mm, 50 mm, 75 mm, or 100 mm mineral insulation to meet specific clearance and thermal requirements.

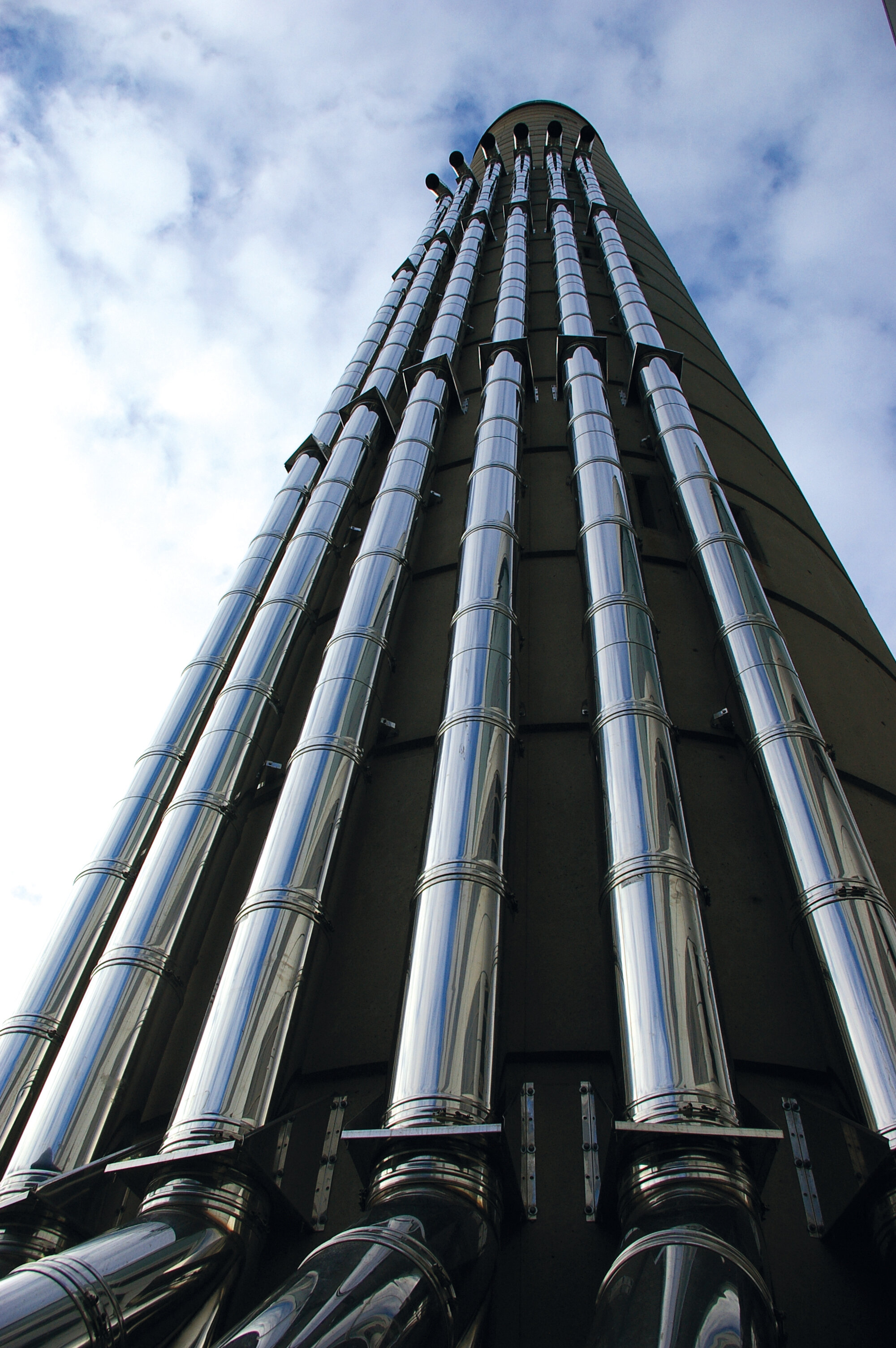

Gallery (Pictures & Videos)
Further interesting content
ICS - The double-walled chimney system
The double-walled stainless steel chimney system with continuous thermal insulation in a handy element design. Suitable for all fuels.
Find the right product for you!
Haven't found the right product yet? Use our online assistant to find the right product for your needs.
ICS 5000 - High-pressure-tight exhaust system
The perfect stainless steel exhaust solution when it comes to negative & positive pressures of up to 5000 Pa and high flue gas temperatures.
Details & Services
Find out more about the details and services for the ICS 5000 gas flue system, such as the design, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.
The system structure
The double-walled flue gas system ICS 5000 can be installed either on the wall or on the floor. The wall duct follows the plaster door, after which the heating system is connected. The ICS 5000 consists of an outer casing and an inner pipe, between which thermal insulation is integrated. The system is also equipped with a capillary bead, inner seal and (static) clamping tape.
Technical data
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,5 - 1,0 mm |
Wall thickness per diameter (outside) |
0,5 - 0,7 mm |
| Application | |
Flue gas temperature (dry) |
≤ 600 °C |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
Material (Insulation) |
Mineral fibre |
Material (Outer case) |
Material no.: 1.4301 |
Thermal resistance by insulation thickness |
0,37 - 0,56 m²K/W |
| General product features | |
Operating |
Dry, Negative pressure (N), Positive pressure (P-H) |
Room sealed |
No |
Area of application |
Heating systems, Generators, Emergency generators |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
High pressure 5000 Pa, Condensing boiler technology, Low temperature technology |
