PERMETER SMOOTH AIR - přivádí spalovací vzduch a odvádí spaliny od kamen

PERMETER SMOOTH AIR

Lightweight stainless steel three-layer chimney system, designed for flue gas extraction and combustion air intake from the upper part of the chimney body. Suitable for solid fuels and most types of appliances, in a designer colour style. Lightweight construction, no foundation required, very quick and easy installation.

TO CONTACT & ADVICE

Highlights

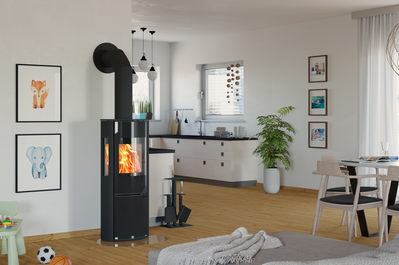

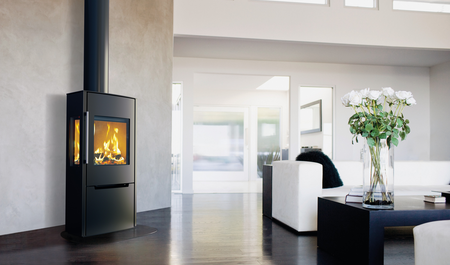

The PERMETER SMOOTH AIR chimney system supplies air to the appliance and at the same time safely exhausts the flue gases to the outside environment via an internal liner. The combustion process thus becomes completely independent of the room air. It can be used, for example, with the SIRIUS or SARGAS design stoves. We have summarised all the advantages of this chimney system for you:

Quick Links

Advantages with PERMETER SMOOTH AIR

  • Perfect appearance without visible buckles
  • Safe combustion air supply
  • High operational reliability
  • Continuous thermal insulation - no thermal bridges, depending on the application
  • Quick and safe installation
Kamna s odvodem spalin systémem PERMETER SMOOTH AIR

Easy installation & safe operation

Assembly by inserting the individual parts with neck joints into each other. Continuous thermal insulation along the entire height of the chimney ensures low surface temperatures of the chimney casing. Safe supply of combustion air through the intermediate space of the chimney casing. Can be mounted on the wall or directly on the appliance as a vertical flue.
Detail prostupu komínu stropní konstrukcí.
Assembly by inserting the individual parts with neck joints into each other. Continuous thermal insulation along the entire height of the chimney ensures low surface temperatures of the chimney casing. Safe supply of combustion air through the intermediate space of the chimney casing. Can be mounted on the wall or directly on the appliance as a vertical flue.

Energy efficient

The PERMETER SMOOTH AIR chimney system is characterised by continuous thermal insulation. High temperature resistant mineral wool serves as an effective insulation. The thermal insulation is available in different thicknesses. As standard, the thermal insulation is 25 and 50 mm thick.
Bílé provedení systému PERMETER SMOOTH AIR
The PERMETER SMOOTH AIR chimney system is characterised by continuous thermal insulation. High temperature resistant mineral wool serves as an effective insulation. The thermal insulation is available in different thicknesses. As standard, the thermal insulation is 25 and 50 mm thick.

System composition

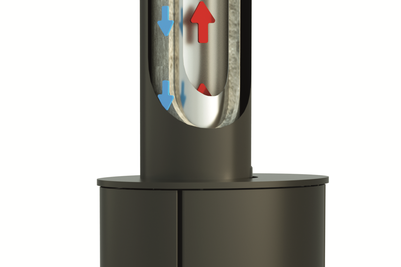

The system consists of a stainless steel inner liner, a comaxit steel outer jacket and inner and outer insulation. In the space between them air flows for combustion.

  1. Outer shell of comaxit steel
  2. Inner stainless steel liner
  3. Flue gas outlet
  4. Internal thermal insulation
  5. Air gap for combustion air intake
  6. External thermal insulation
Skladba systému PERMETER SMOOTH AIR
The system consists of a stainless steel inner liner, a comaxit steel outer jacket and inner and outer insulation. In the space between them air flows for combustion.

  1. Outer shell of comaxit steel
  2. Inner stainless steel liner
  3. Flue gas outlet
  4. Internal thermal insulation
  5. Air gap for combustion air intake
  6. External thermal insulation

Gallery (Images & Videos)

Image Title: If somebody hovers the image it apears.
Image Title: If somebody hovers the image it appears.
Image Title: If somebody hovers the image it appears.
Image Title: If somebody hovers the image it appears.
Image Title: If somebody hovers the image it appears.

Further interesting content

ICS - The double-walled steel gas flue system

The double-walled stainless steel flue gas system with continuous thermal insulation in a handy element design. Suitable for all fuels.

TO THE PRODUCT ICS

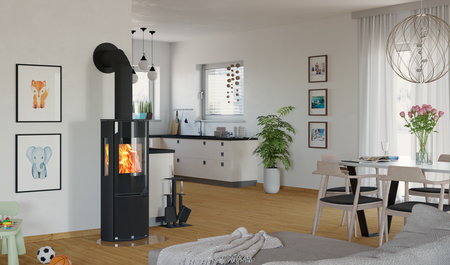

SIRIUS - The ambient air-independent stove
