ME - The single-walled exhaust system
Versatile single-wall system for relining, cascades & industrial exhaust
The Schiedel ME is a modular, single-wall stainless steel system engineered for residential, commercial, and industrial exhaust applications.
Ideal for chimney relining (renovation) and modernizing existing shafts, it supports oil, gas, wood, pellet, and biomass heat generators. Equipped with factory-fitted lip seals, it accommodates multi-appliance stacks (up to 10 condensing units on a single line) and cascade boiler configurations. For combined heat and power plants, specialized high-temperature VITON seals are available.
Quicklinks
High overpressure capability (up to 5000 Pa)
Certified for high overpressure operating conditions (Class H1 / P1 up to 5000 Pa) as well as standard negative pressure setups, ensuring total gas tightness for condensing boilers and forced-draft appliances.
Certified for high overpressure operating conditions (Class H1 / P1 up to 5000 Pa) as well as standard negative pressure setups, ensuring total gas tightness for condensing boilers and forced-draft appliances.
Optimized for cascades & multi-appliance stacks
Specifically designed to handle multi-connection setups, including space-saving vertical floor-by-floor boiler stacks and multi-boiler cascade arrangements.
Specifically designed to handle multi-connection setups, including space-saving vertical floor-by-floor boiler stacks and multi-boiler cascade arrangements.
Precision push-fit assembly
Features a capillary stop bead and drawn spigot ends with factory-installed acid- and heat-resistant lip seals for rapid, secure jointing without extra site modifications.
Features a capillary stop bead and drawn spigot ends with factory-installed acid- and heat-resistant lip seals for rapid, secure jointing without extra site modifications.
Soot-fire resistant & lightweight
Manufactured from high-grade stainless steel, offering high structural stiffness via reinforcement beads alongside low overall weight for effortless installation in narrow shafts.
Manufactured from high-grade stainless steel, offering high structural stiffness via reinforcement beads alongside low overall weight for effortless installation in narrow shafts.
Gallery (Pictures & Videos)
Further interesting content
Find the right product for you!
Haven't found the right product yet? Use our online assistant to find the right product for your needs.
ICS - The double-walled stainless steel chimney system
ICS is a moisture-resistant, double-walled stainless steel chimney system with low weight suitable for all fuels & negative/ positive pressure.

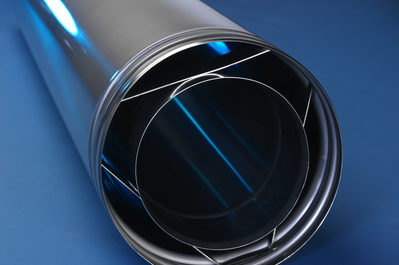

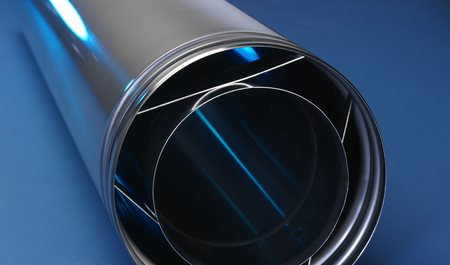

US - High temperatures & negative pressure
The stainless steel air/flue gas system is ideal for high flue gas temperatures in negative pressure operation for room-sealed gas fires.
Details & Services
Find out more about the details and services for the ME gas flue system, such as the design, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.
The system structure

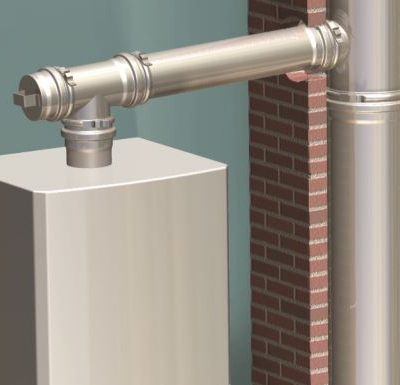

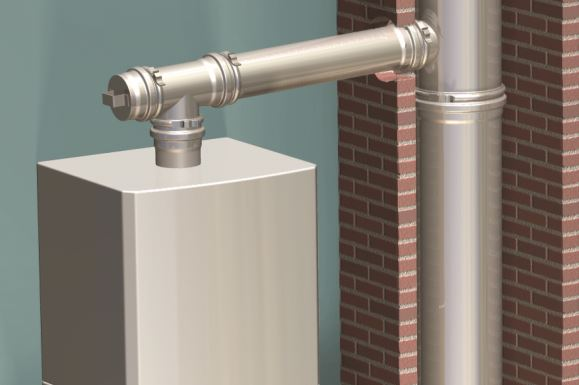

The ME system is attached to the fireplace and then fed into the internal brick chimney. The system is routed through each floor and ends at the roof with a cover.
Technical data
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,5 - 0,8 mm |
| Application | |
Flue gas temperature (dry) |
≤ 600 °C |
Operating temperature under negative pressure |
≤ 600 °C |
Operating temperature under positive pressure |
≤ 200 °C |
Short firing temperature under positive pressure |
≤ 200 °C |
Short firing temperature under negative pressure |
≤ 600 °C |
Operating pressure |
≤ 5000 Pa |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
| General product features | |
Operating |
Negative pressure (N), Positive pressure (P-H) |
Room sealed |
No |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
Low temperature technology, High pressure 5000 Pa, Condensing boiler technology, Conventional heating technology |
