Schiedel PERMETER: Three-layer stainless steel chimney system | Schiedel

Elegantní černé provedení komínu PERMETER

PERMETER

The Schiedel PERMETER not only makes a distinctive architectural feature of your home, but also combines design and technology in one element. This is reflected in the range of applications and functionality. The Schiedel PERMETER can be selected from 5 standard internal diameters from Ø 130 to 250 mm with 25 mm or 50 mm insulation.

KONTAKT & PORADENSTVÍ

Most important information

PERMETER is a stainless steel three-layer chimney system with continuous thermal insulation in a practical design and low overall weight. Suitable for all fuels and most types of appliances, in a designer black style. Suitable as an additional or facade chimney. Lightweight construction, no foundation required, very quick and easy to install. We have summarised for you all the advantages of this chimney system:

Quick Links

Why PERMETER?

  • Wide range including functional accessories
  • High operational reliability
  • Continuous thermal insulation 25 or 50 mm - no thermal bridges, depending on the application
  • Quick and safe installation
  • Perfect appearance for indoors and outdoors

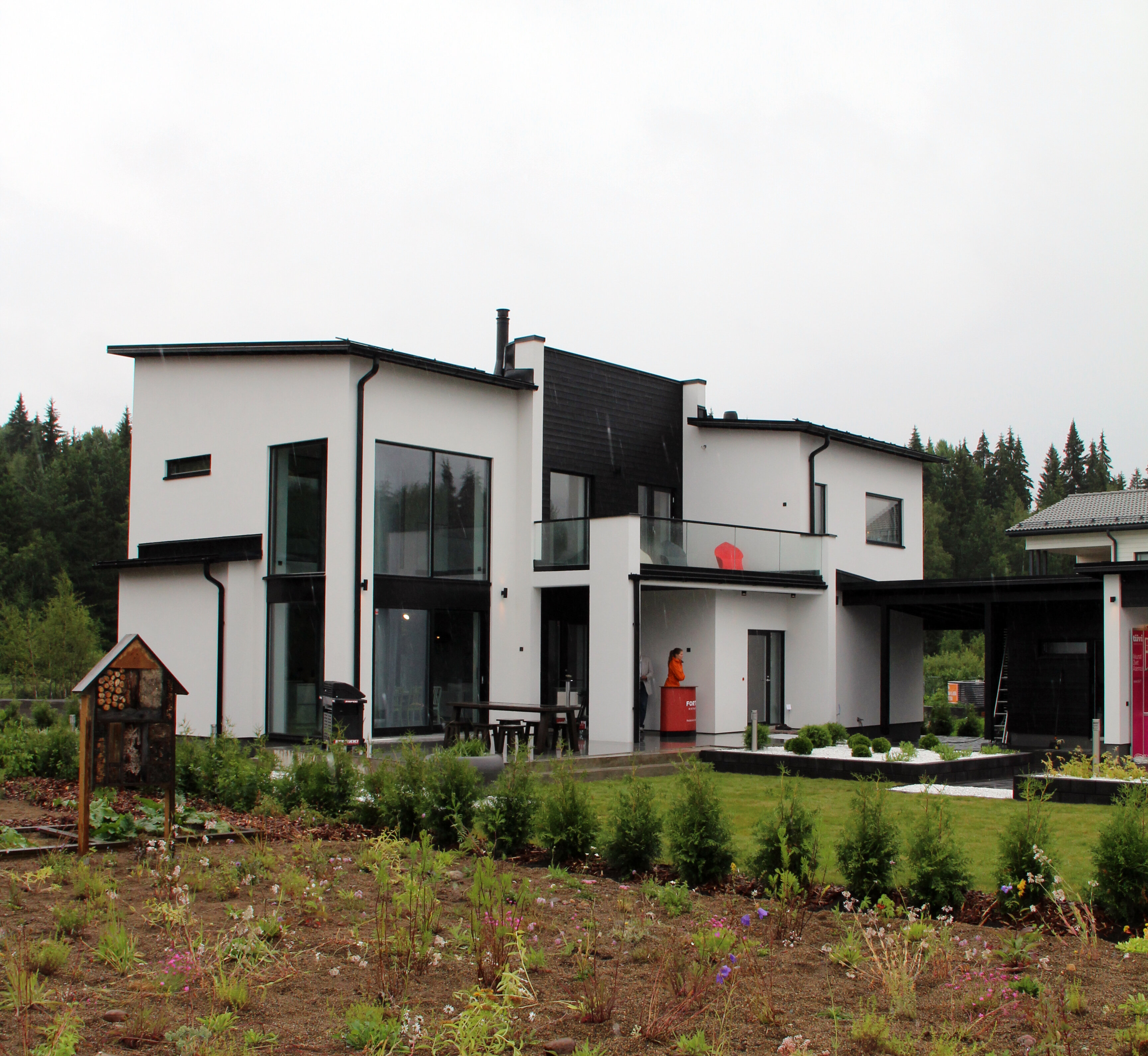

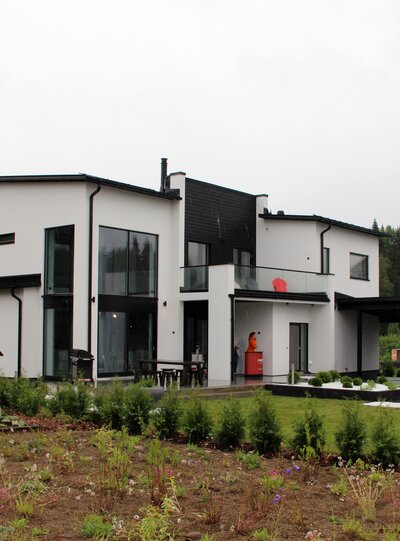

Dům s komínem PERMETER
  • Wide range including functional accessories
  • High operational reliability
  • Continuous thermal insulation 25 or 50 mm - no thermal bridges, depending on the application
  • Quick and safe installation
  • Perfect appearance for indoors and outdoors

Functional

The multi-layered system for the extraction of combustion gases from the individual functional parts with integrated thermal insulation is suitable for all fuels and appliances under vacuum and overpressure and is also resistant to moisture. When used with solid fuels, the PERMETER can be used under vacuum and for dry operation. The PERMETER stainless steel chimney can be used indoors and outdoors. It is particularly optimised for retrofitting - for family and apartment houses, conservatories and commercial buildings.
Systém PERMETER nad střechou - od Komíny Kašpar
The multi-layered system for the extraction of combustion gases from the individual functional parts with integrated thermal insulation is suitable for all fuels and appliances under vacuum and overpressure and is also resistant to moisture. When used with solid fuels, the PERMETER can be used under vacuum and for dry operation. The PERMETER stainless steel chimney can be used indoors and outdoors. It is particularly optimised for retrofitting - for family and apartment houses, conservatories and commercial buildings.

Easy installation & safe operation

The connection system with socket joint and integrated double-rail clamping strips ensures fast and secure assembly thanks to the double screw connection. No thermal insulation or welding work is required on site. The surface temperature is very low and the handy dimensions with low weight have high stability, yet are easy to install.
Systém spon u komínu PERMETER
The connection system with socket joint and integrated double-rail clamping strips ensures fast and secure assembly thanks to the double screw connection. No thermal insulation or welding work is required on site. The surface temperature is very low and the handy dimensions with low weight have high stability, yet are easy to install.

The perfect look

The PERMETER system is supplied in black as standard. Other RAL colours, e.g. white, grey or others, can be produced as an atypical colour. Due to its perfect exterior appearance, it is often used as an impressive architectural element both indoors and outdoors.
Základní barvou PERMETERU je černá
The PERMETER system is supplied in black as standard. Other RAL colours, e.g. white, grey or others, can be produced as an atypical colour. Due to its perfect exterior appearance, it is often used as an impressive architectural element both indoors and outdoors.

Energy efficient

The PERMETER chimney system is characterised by continuous thermal insulation. High temperature resistant mineral wool serves as an effective insulation. The thermal insulation is available in different thicknesses. As standard, the thermal insulation is 25 and 50 mm thick.
The PERMETER chimney system is characterised by continuous thermal insulation. High temperature resistant mineral wool serves as an effective insulation. The thermal insulation is available in different thicknesses. As standard, the thermal insulation is 25 and 50 mm thick.

Gallery (Images & Videos)

Černý Permeter po fasádě
Image Title: If somebody hovers the image it appears.
Image Title: If somebody hovers the image it appears.
Image Title: If somebody hovers the image it appears.
