PRIMA PLUS - Stainless steel chimney system for renovation
The reliable stainless steel solution for chimney renovation

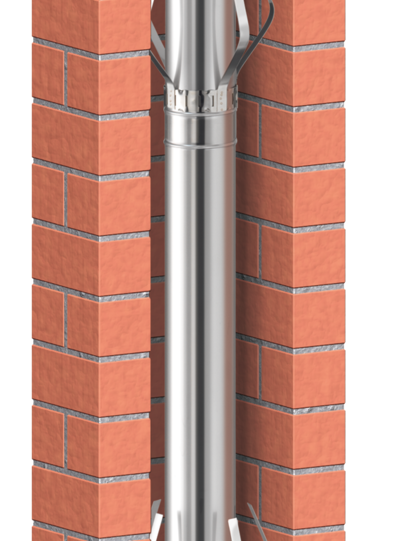

The Schiedel PRIMA PLUS system is a single-wall stainless steel relining system designed to retrofit existing brick chimneys when upgrading heating boilers or fireplaces.
Manufactured from acid- and corrosion-resistant stainless steel, PRIMA PLUS provides long-term protection against aggressive condensates generated by modern heating appliances. By inserting factory-fitted elastomer lip seals into the push-fit joints, the system operates safely under overpressure conditions up to 200 Pa (and up to 5000 Pa with special locking bands up to DN 300).
Quicklinks
High acid & corrosion resistance
Constructed from continuous butt-welded AISI 316L (1.4404) stainless steel (0.6 mm to 1.0 mm wall thickness). Optional 1.4539 material grade available for demanding wet biomass, pellet, or wood chip applications.
Constructed from continuous butt-welded AISI 316L (1.4404) stainless steel (0.6 mm to 1.0 mm wall thickness). Optional 1.4539 material grade available for demanding wet biomass, pellet, or wood chip applications.
Overpressure & negative pressure certified
Fully certified under EN 1856-2 for oil and gas overpressure operation up to 200°C with integrated lip seals, as well as dry negative pressure solid fuel applications up to 600°C.
Fully certified under EN 1856-2 for oil and gas overpressure operation up to 200°C with integrated lip seals, as well as dry negative pressure solid fuel applications up to 600°C.
Precision push-fit assembly
Lightweight, precisely dimensioned components with push-fit socket connections ensure rapid, tool-free installation inside narrow masonry shafts.
Lightweight, precisely dimensioned components with push-fit socket connections ensure rapid, tool-free installation inside narrow masonry shafts.
Gallery (Pictures & Videos)
Further interesting content

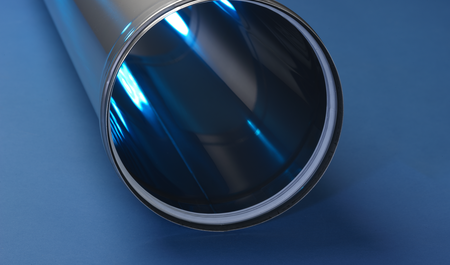

ME - The single-walled exhaust system
ME is a modular single-walled exhaust system made of stainless steel. It is suitable for refurbishments, boilers, etc.

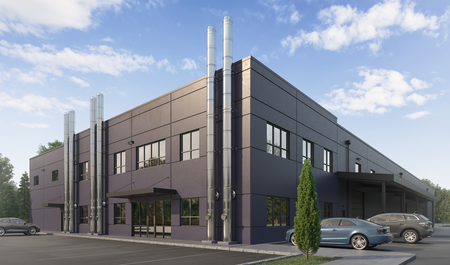

ICS - The double-walled stainless steel chimney system
ICS is a moisture-resistant, double-walled stainless steel chimney system with low weight suitable for all fuels & negative/ positive pressure.

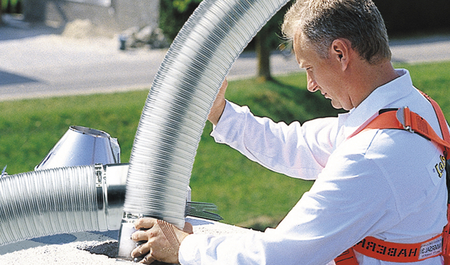

TECNOFLEX - Flexible steel chimney system
Stainless steel system for inserting bent chimneys. Easy and quick installation without extensive demolition work.
Details & Services
Find out more about the details and services for the PRIMA PLUS system, such as the structure, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.

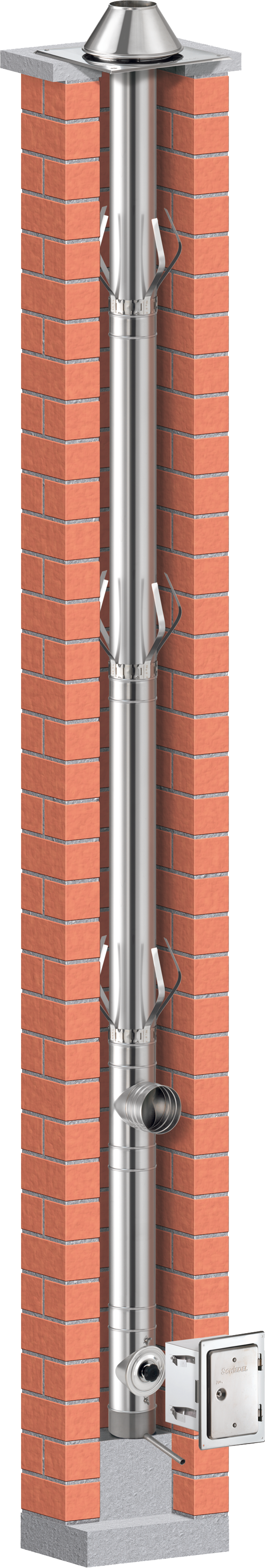

The system structure
Once sufficiently large installation openings have been created for the inspection opening and the flue pipe connection, the individual components of the system can be installed. The individual components are inserted into each other and secured with a clamping strap if necessary. At their upper end, the elements have a sleeved end into which the plug-in end of the following element is inserted. To finish off, the shaft cover prevents rainwater from penetrating the existing chimney. The pipe column is guided centrally using spacer springs and the set screws of the shaft cover
Technical data
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,6 - 1,0 mm |
| Application | |
Flue gas temperature (wet) |
≤ 600 °C |
Flue gas temperature (dry) |
≤ 600 °C |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
Material (Outer case) |
Material no.: 1.4404 |
| General product features | |
Operating |
Humid, Dry, Negative pressure (N), Positive pressure (P-H) |
Room sealed |
No |
Area of application |
Oil fireplaces, Gas fireplaces |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
Condensing boiler technology, High pressure 5000 Pa, Low temperature technology |
