UNI PLUS - The classic insulating chimney

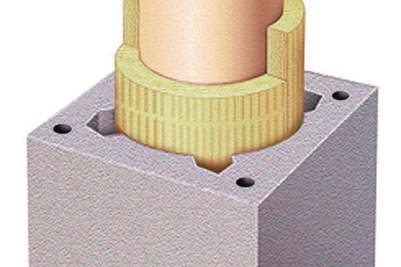

Engineered precision in a three-layer architecture
The Schiedel UNI PLUS chimney system combines three perfectly matched components to ensure exceptional structural stability, thermal resistance, and long-term operating efficiency for modern homes:
- High-temperature fireclay inner pipe: Features a round geometry engineered for optimal flow dynamics. Highly resistant to extreme heat, acids, and soot fires. The precise rebate joint system ensures superior joint stability and tightness.
- Custom-fitted mineral insulation: High-density insulation board engineered with specialized profiling for exact alignment around the inner ceramic pipe and within the outer casing block.
- Lightweight concrete casing block: Designed with integrated rear-ventilation channels to prevent moisture accumulation, alongside corner reinforcement channels to accommodate structural stability setups for tall roof clearances.
Quicklinks
Proven three-layer stability
The synchronized interaction between the ceramic core, insulation layer, and outer casing block ensures structural integrity and high operational reliability across demanding heating conditions.
The synchronized interaction between the ceramic core, insulation layer, and outer casing block ensures structural integrity and high operational reliability across demanding heating conditions.
Versatile configuration options
Available in single-flue, double-flue, and integrated ventilation channel setups. Compatible with various fuel types and designed to adapt smoothly to standard and complex residential floor plans.
Available in single-flue, double-flue, and integrated ventilation channel setups. Compatible with various fuel types and designed to adapt smoothly to standard and complex residential floor plans.
Streamlined assembly & prefabricated base
Available with a factory-assembled prefabricated chimney base for the first vertical meter, saving significant installation time and reducing labor costs on-site.
Available with a factory-assembled prefabricated chimney base for the first vertical meter, saving significant installation time and reducing labor costs on-site.
Long-term material durability
Built from high-density fireclay and mineral concrete components, the UNI PLUS system withstands severe thermal stress and acidic condensates, delivering dependable structural performance for decades.
Built from high-density fireclay and mineral concrete components, the UNI PLUS system withstands severe thermal stress and acidic condensates, delivering dependable structural performance for decades.
Gallery (Pictures & Videos)
Further interesting content
ABSOLUT - The Schiedel premium chimney
Check out all the system benefits of our premium product- the Schiedel ABSOLUT - now.
MULTI - The chimney for multiple heating appliances
The chimney system for multi-occupancy of decentralized fireplaces in apartment buildings.
Find the right product for you!
Haven't found the right product yet? Use our online assistant to find the right product for your needs.
Details & Services
Find out more about the details and services for the UNI PLUS chimney system, such as the structure of the system, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.
The system structure
The UNI PLUS system starts on a foundation built on site, on which a prefabricated base is mounted. This contains the inspection/cleaning door and all other components. After a ceiling duct, the flue pipe connection is attached to connect the fireplace. The chimney is crowned with a Schiedel chimney head including the stainless steel air inlet head plate and an outlet cone.
Technical data
| Application | |
Flue gas temperature (dry) |
≤ 400 °C |
Material (Inner liner) |
Ceramic |
Material (Insulation) |
Mineral fibre |
Material (Outer case) |
Lightweight concrete |
Thermal resistance by insulation thickness |
0,465 m²K/W |
| General product features | |
Operating |
Negative pressure (N) |
Room sealed |
Yes |
Occupation |
Single |
Suitable for passive house |
No |
Heating technology |
Low temperature technology, Conventional heating technology |
