PERMETER SMOOTH - Locking-band-free stainless steel chimney system
Locking-band-free design for architectural interior integration
Schiedel PERMETER SMOOTH is a double-walled chimney system engineered to create a clean, modern aesthetic in visible living spaces.
The inner pipe is manufactured from high-grade stainless steel with continuous butt-seam welding. The powder-coated steel outer jacket absorbs structural loads. The intervening gap is pre-insulated with 25 mm (standard) or 50 mm (optional) high-density Superwool mineral insulation. Individual components connect smoothly via an engineered push-fit system that entirely eliminates visible locking bands.
Quick Links

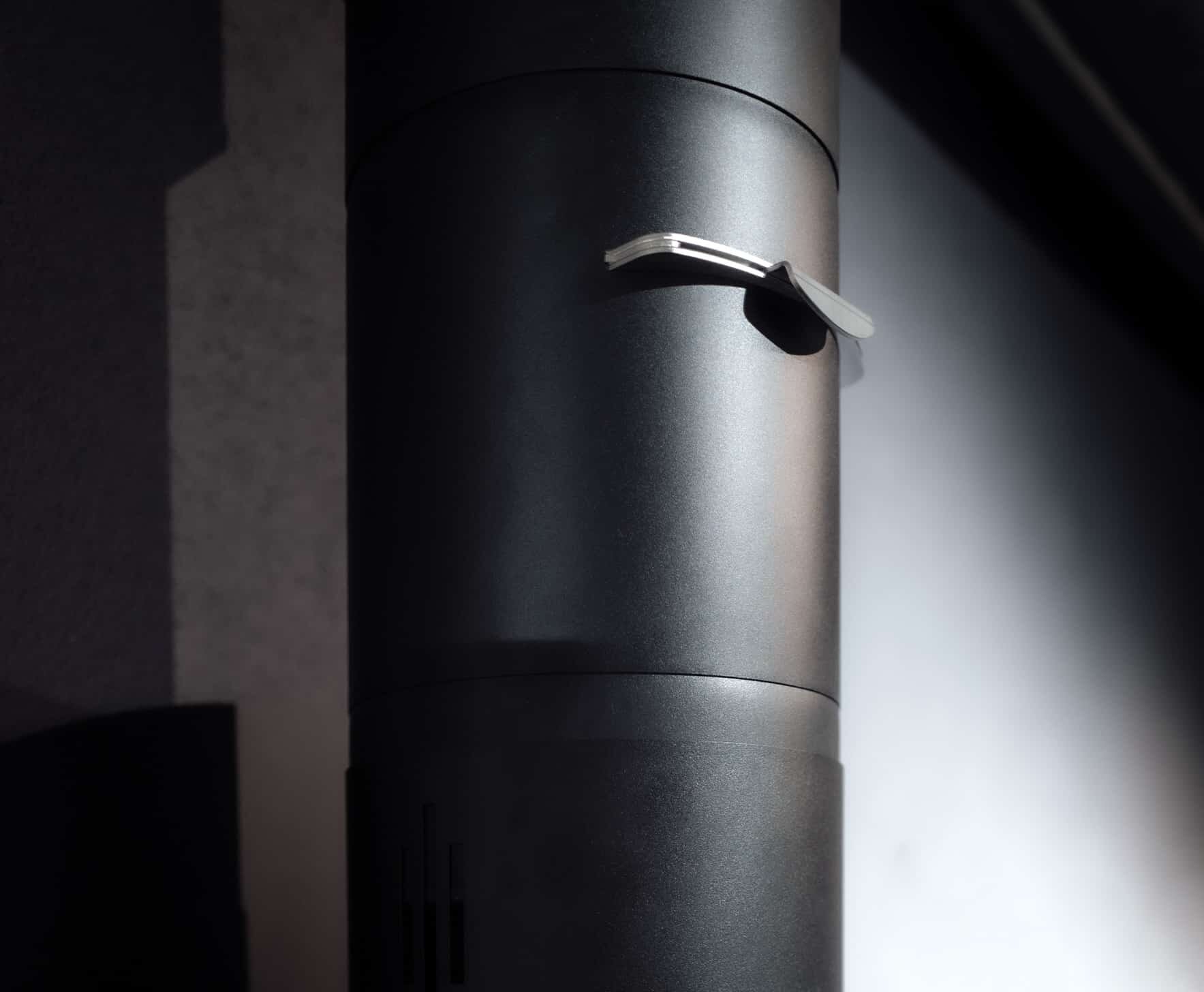

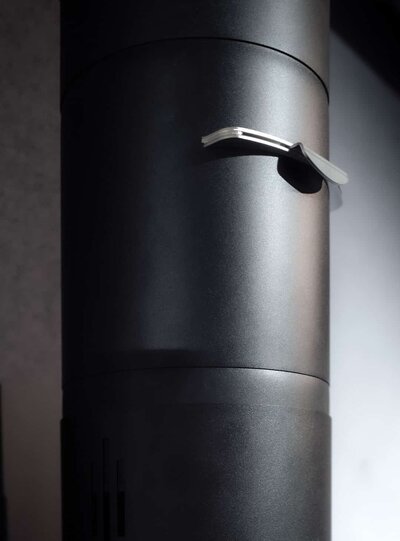

Locking-band-free push-fit assembly
Precision push-fit socket system designed to create a continuous, smooth outer pipe surface without locking bands, offering a visually refined finish for modern interiors.
Precision push-fit socket system designed to create a continuous, smooth outer pipe surface without locking bands, offering a visually refined finish for modern interiors.
High-grade 1.4521 stainless steel inner liner
Manufactured with a continuous butt-welded stainless steel inner pipe (material grade 1.4521) for high thermal resistance, structural stability, and dry operation under negative pressure.
Manufactured with a continuous butt-welded stainless steel inner pipe (material grade 1.4521) for high thermal resistance, structural stability, and dry operation under negative pressure.
Specialized Superwool thermal insulation
Pre-insulated with continuous 25 mm (or optional 50 mm) Superwool mineral insulation to maintain low outer surface temperatures and ensure safe operating conditions.
Pre-insulated with continuous 25 mm (or optional 50 mm) Superwool mineral insulation to maintain low outer surface temperatures and ensure safe operating conditions.
Structural powder-coated outer jacket
Load-bearing outer shell made of powder-coated steel, available in standard Matt Black as well as Matt White or Matt Grey on order.
Load-bearing outer shell made of powder-coated steel, available in standard Matt Black as well as Matt White or Matt Grey on order.

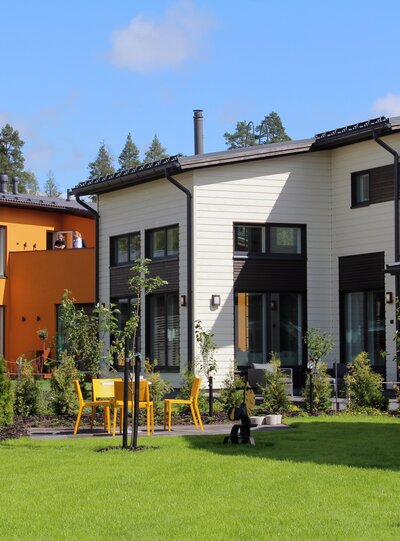

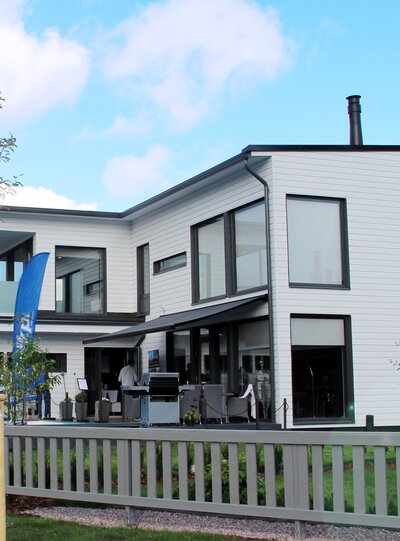

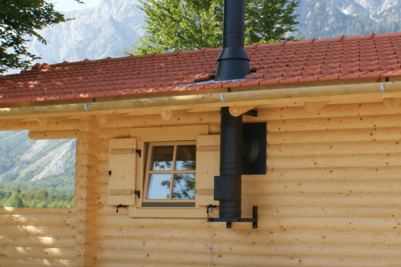

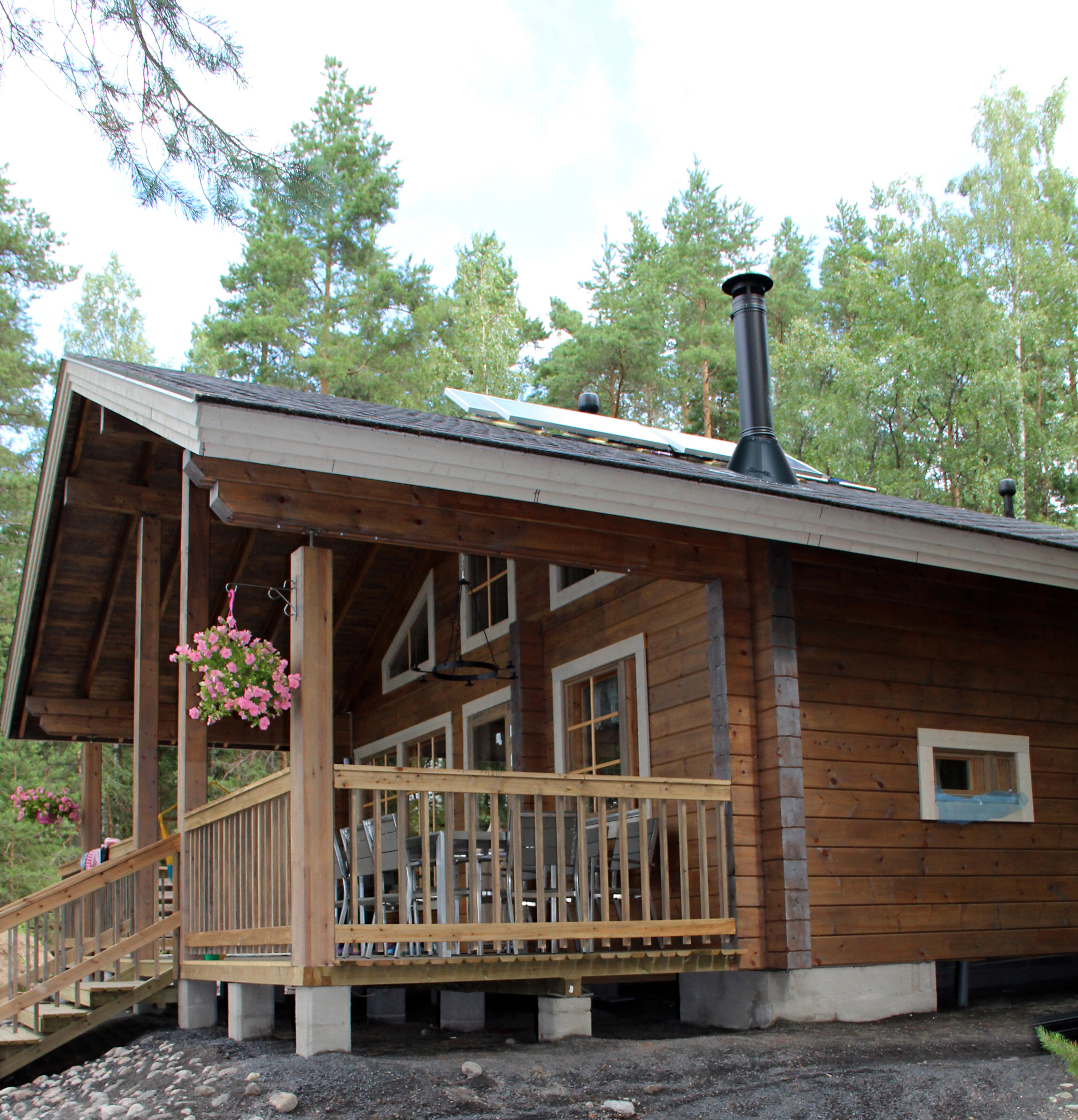

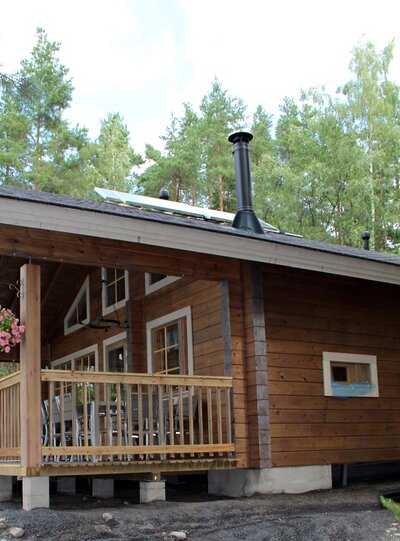

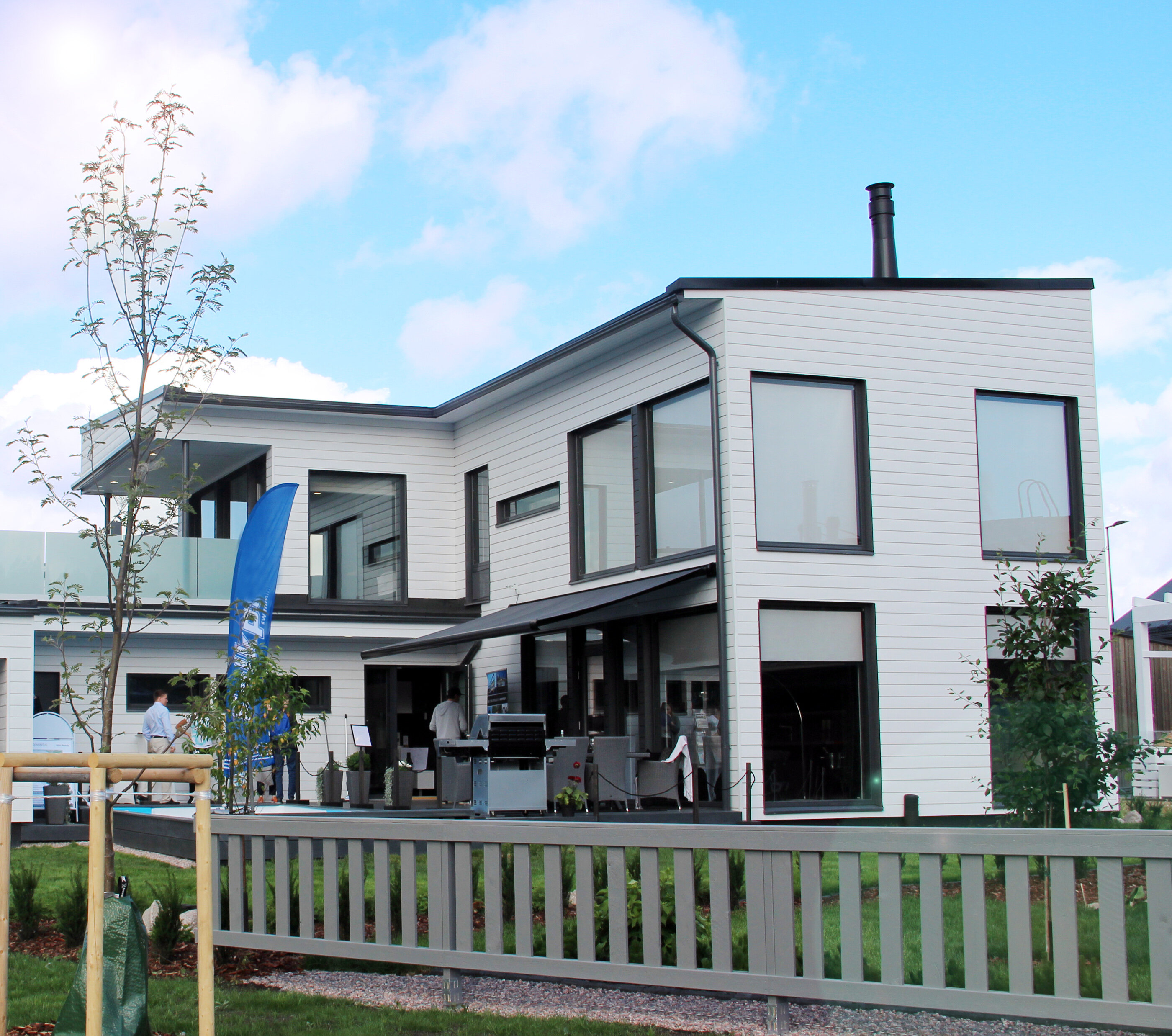

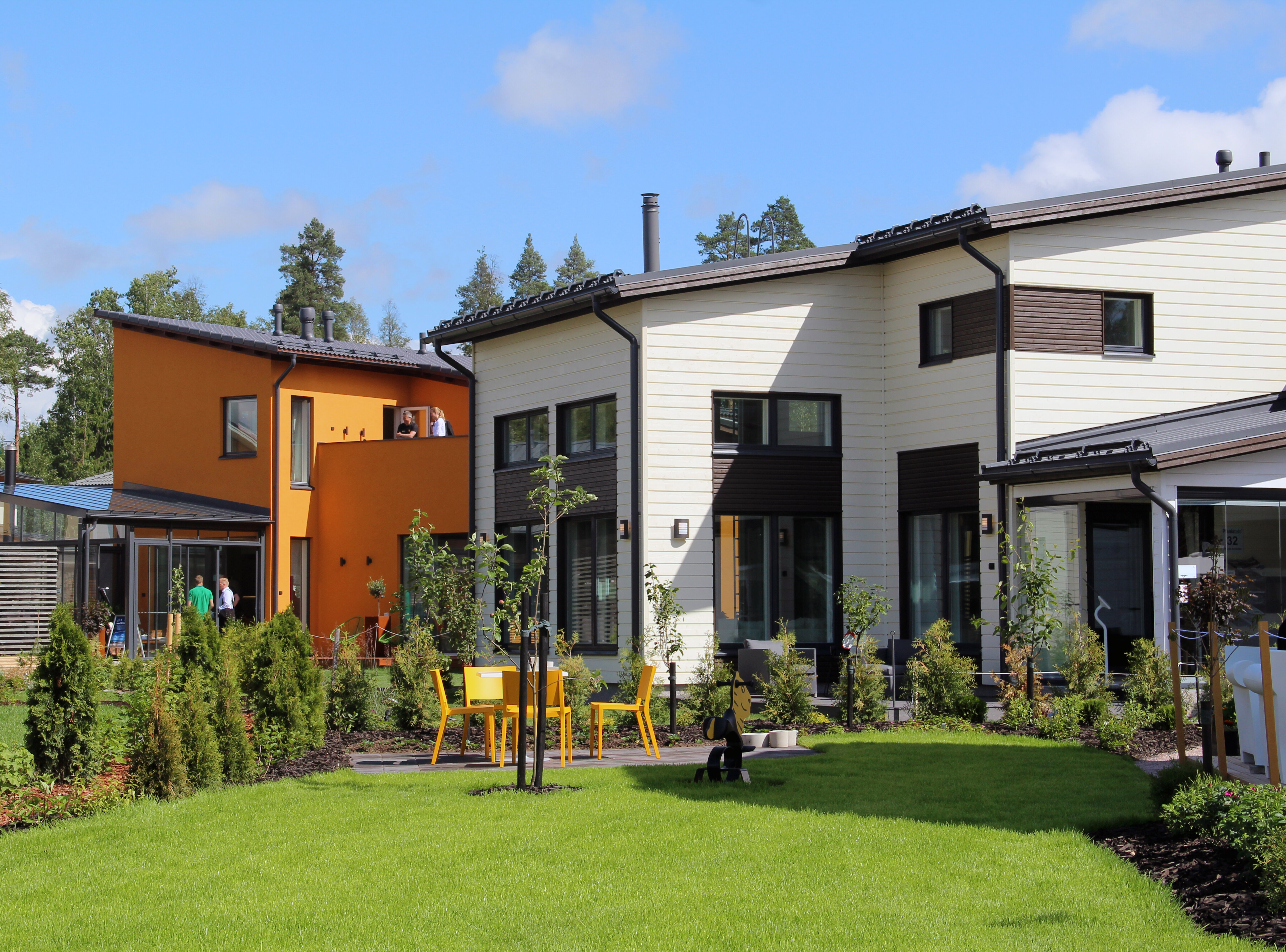

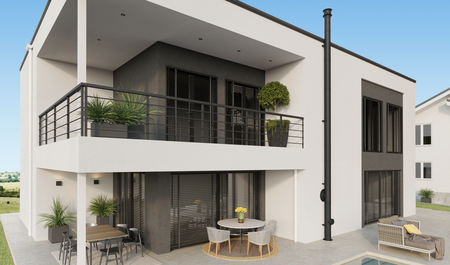

Gallery (Images & Videos)
Further interesting content
PERMETER - Three-layer stainless steel chimney
PERMETER not only makes a distinctive architectural feature, but also combines design and technology in one element.
TECNOFLEX - Flexible steel chimney system
Stainless steel system for inserting bent chimneys. Easy and quick installation without extensive demolition work.
PRIMA SMOOTH - Wood & multifuel appliances!
PRIMA SMOOTH is a precision engineered product, designed for use on atmospheric wood burning & multifuel appliances.
Details & Services
Find out more about the details and services of the PERMETER SMOOTH chimney, such as design, detailed technical data or suitable services. You also have the possibility to download product leaflets or brochures.

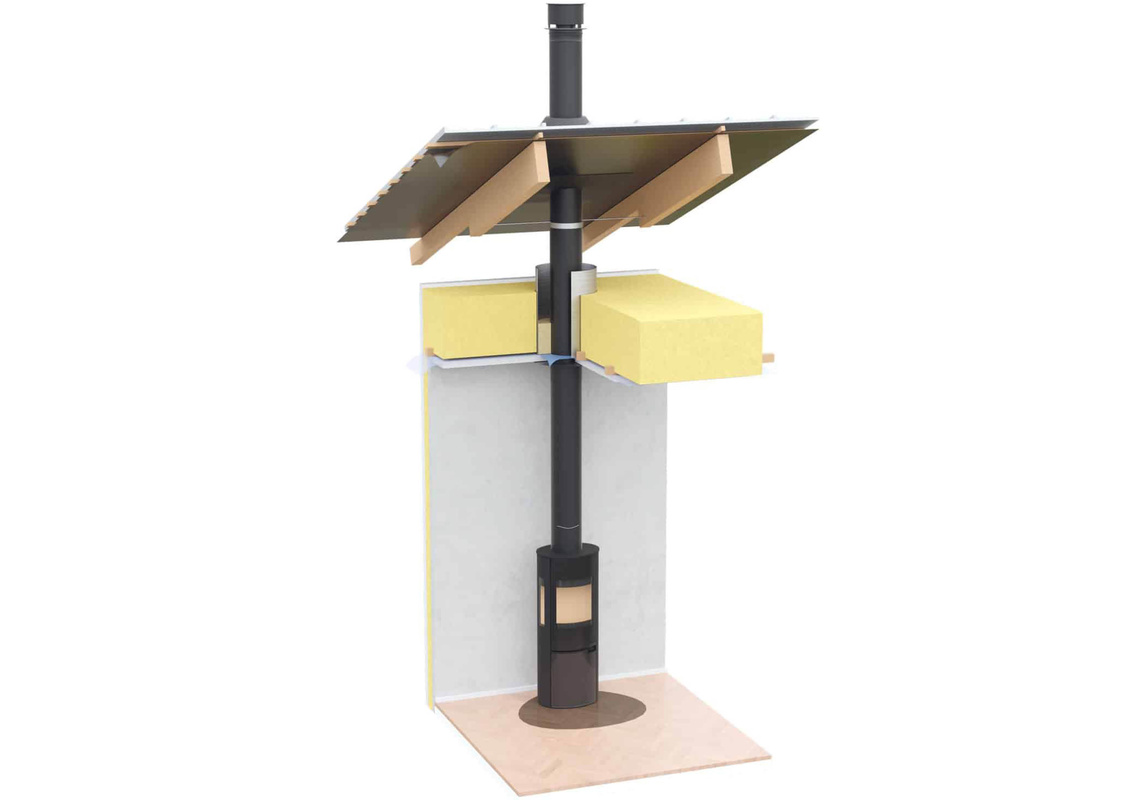

The structure of the system
The PERMETER SMOOTH multilayer stainless steel chimney consists of a comaxite-painted steel outer shell and a stainless steel inner liner, between which thermal insulation is integrated. The parts simply slide into each other, the joint is without visible clips.
Technical data
| Basic data (dimensions, weight & co.) | |
Diameter (internal) |
130 - 200 mm |
Diameter (external) |
180 - 250 mm |
Wall thickness per diameter (internal) |
0,5 mm |
Insulation thickness per diameter |
25 / 50 mm |
Wall thickness per diameter (outside) |
0,6 mm |
Weight per diameter |
5,8 - 10,3 kg/m |
| Application | |
Flue gas temperature (wet) |
< 450 °C |
Flue gas temperature (dry) |
< 450 °C |
Material (Inner liner) |
Material no.: 1.4521 |
Thermal resistance by insulation thickness |
0,37 / 0,56 m²K/W |
| General product features | |
Operating |
Negative pressure (N), Dry, Humid |
Room sealed |
Yes |
Colour |
Black, White, Grey |
Occupation |
Single |
Suitable for passive house |
No |
Heating technology |
Conventional heating technology |
