ePURO TOP - The fine dust separator for the chimney outlet
Highlights
The ePURO TOP fine dust separator is an electrostatic particle separator for wood firing systems, such as fireplaces and tiled stoves, but also for wood/pellet central heating systems, up to 50 kW. It is installed on the chimney mouth and is suitable for use with masonry chimneys with or without an inner pipe or with double-walled stainless steel systems. The fine dust separator reduces the proportion of fine dust in the flue gas by up to 90 %. We have summarized all the advantages of the fine dust separator for you:
Quicklinks
Great flexibility
The fine dust separator is suitable for fireplaces and tiled stoves, but also for wood/pellet central heating systems up to 50 kW. It does not reduce the free flue gas cross-section and is also suitable for multiple use with solid fuels. Thanks to its flexible use, the ePURO TOP is suitable for use with masonry chimneys with or without an inner pipe or with double-walled stainless steel systems.
The fine dust separator is suitable for fireplaces and tiled stoves, but also for wood/pellet central heating systems up to 50 kW. It does not reduce the free flue gas cross-section and is also suitable for multiple use with solid fuels. Thanks to its flexible use, the ePURO TOP is suitable for use with masonry chimneys with or without an inner pipe or with double-walled stainless steel systems.
Functional
With the ePURO TOP, outdated wood-burning stoves can be retrofitted and new fireplaces optimized. The proportion of fine dust in the flue gas from wood-burning fires can be reduced by up to 90 % with the electrostatic fine dust separator. The particle separator is based on the electrostatic principle. The fine dust particles flow through the flue gas duct with the flue gases. Electrons are released by a high-voltage electrode. The electrons move towards the chimney wall via electrostatic forces. In the process, the fine dust particles are charged and also moved towards the wall. The fine dust collects on the chimney wall and clumps together to form coarse flakes. These deposits are removed during cleaning by the chimney sweep. Cleaning the flue gas duct prevents the flakes from returning to the fine dust form.
With the ePURO TOP, outdated wood-burning stoves can be retrofitted and new fireplaces optimized. The proportion of fine dust in the flue gas from wood-burning fires can be reduced by up to 90 % with the electrostatic fine dust separator. The particle separator is based on the electrostatic principle. The fine dust particles flow through the flue gas duct with the flue gases. Electrons are released by a high-voltage electrode. The electrons move towards the chimney wall via electrostatic forces. In the process, the fine dust particles are charged and also moved towards the wall. The fine dust collects on the chimney wall and clumps together to form coarse flakes. These deposits are removed during cleaning by the chimney sweep. Cleaning the flue gas duct prevents the flakes from returning to the fine dust form.
Simple assembly
The ePURO TOP fine dust separator is simply placed on top of the chimney outlet in the outdoor area. The flue gas duct can be a brick chimney with or without an inner pipe or a double-walled stainless steel system on the outer wall.
The ePURO TOP fine dust separator is simply placed on top of the chimney outlet in the outdoor area. The flue gas duct can be a brick chimney with or without an inner pipe or a double-walled stainless steel system on the outer wall.
Gallery (Pictures & Videos)
Further interesting content
MULTI - For decentralised fireplaces
A closed air flue system with ceramic inner pipe for the room air-independent operation of gas floor heating systems.
ePURO DOOR - The under-roof solution
Used to effectively reduce flue gas particles in wood-burning fires.
UNI PLUS - The insulating fireplace
The classic UNI PLUS insulated chimney has a three-shell structure with rear ventilation, insulation board and fireclay inner pipe.
Details & Services
Find out more about the details and services for the ePURO TOP fine dust separator, such as the design, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.
The system structure

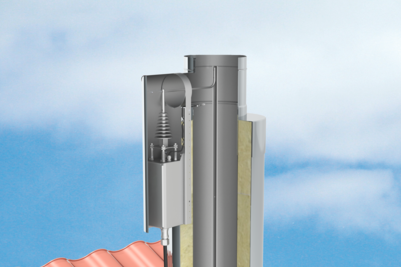

The ePURO TOP fine dust separator can be installed on a masonry chimney with or without an inner pipe (as shown here) or on a double-walled stainless steel system. A 230 V connection must be provided on site. The ePURO TOP is mounted on the chimney head using a cover plate and a T-piece. The flexible electrode is inserted into the flue pipe through the T-piece.
The system is activated when the connected fireplace is in operation and the electrode in the flue gas pipe generates an electric field. The 230 V high-voltage transformer supplies an output of 15 to 30 kV at max. 30 W. In standby mode, the consumption is a low 0.7 W.
Technical data
| Basic data (dimensions, weight & co.) | |
Diameter (external) |
140, 160, 180, 200 mm |
Efficiency |
< 90 % |
| General product features | |
Room sealed |
No, Yes |
Occupation |
Single, Multi |
Suitable for passive house |
Yes |
Heating technology |
Conventional heating technology |
