ICS - The double-walled stainless steel chimney system
Engineered for high-temperature, overpressure & all building types
The Schiedel ICS is a versatile, double-walled stainless steel system designed to handle the demands of modern residential fireplaces as well as large-scale commercial heating systems and biomass boilers.

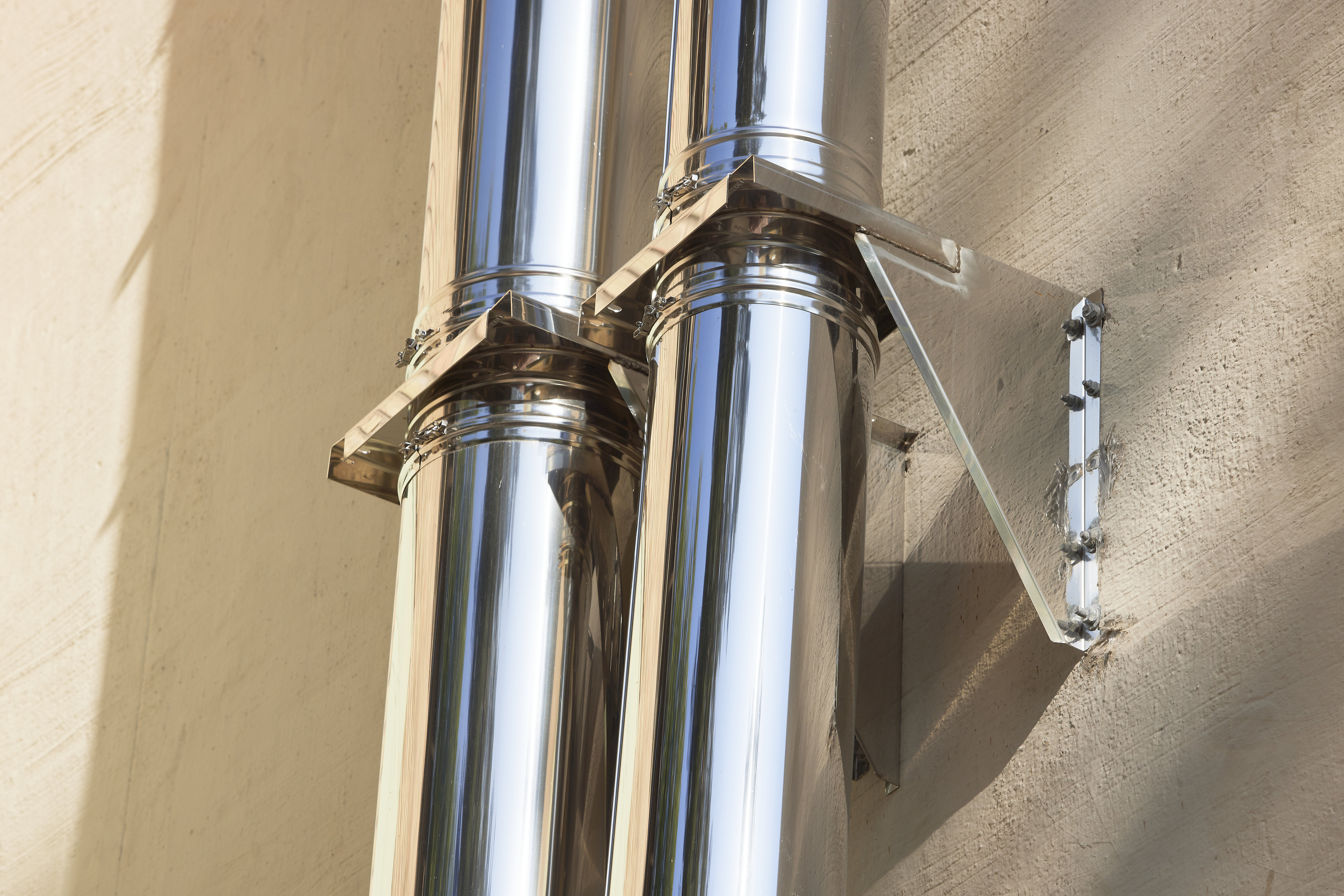

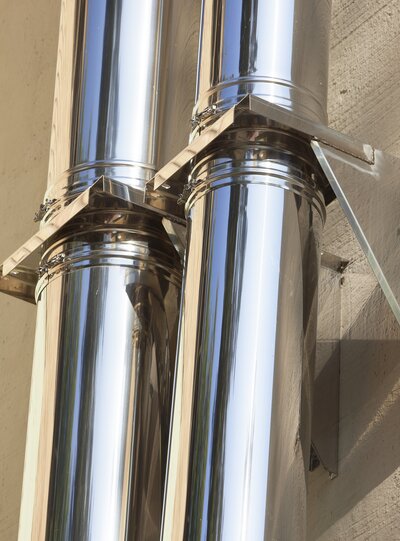

Factory-preinsulated, the system completely eliminates on-site insulation work and welding, ensuring fast and straightforward installation. Its low dead weight and structural design enable flexible wall-mounted, floor-supported, cantilevered, or free-standing configurations.
Quicklinks
High-thermal resistance
Certified for flue gas operating temperatures up to 600°C. The continuous butt-welded stainless steel inner pipe handles extreme thermal loads and rapid temperature changes without structural distortion.
Certified for flue gas operating temperatures up to 600°C. The continuous butt-welded stainless steel inner pipe handles extreme thermal loads and rapid temperature changes without structural distortion.
Factory-insulated precision
Pre-insulated with high-density mineral insulation in 25 mm or 50 mm thicknesses. Maintains consistent surface temperature control, prevents cold bridges, and removes the need for site-applied insulation wrapping.
Pre-insulated with high-density mineral insulation in 25 mm or 50 mm thicknesses. Maintains consistent surface temperature control, prevents cold bridges, and removes the need for site-applied insulation wrapping.
Overpressure & moisture certified
Fully moisture-resistant and certified for overpressure applications up to 200 Pa. Ensures total tightness and long-term protection against aggressive condensates across all load conditions.
Fully moisture-resistant and certified for overpressure applications up to 200 Pa. Ensures total tightness and long-term protection against aggressive condensates across all load conditions.
Streamlined assembly & structural versatility

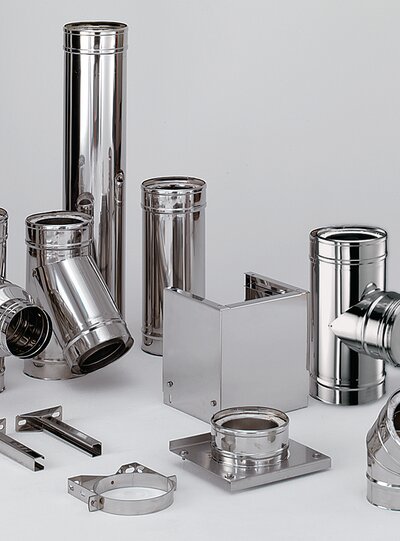

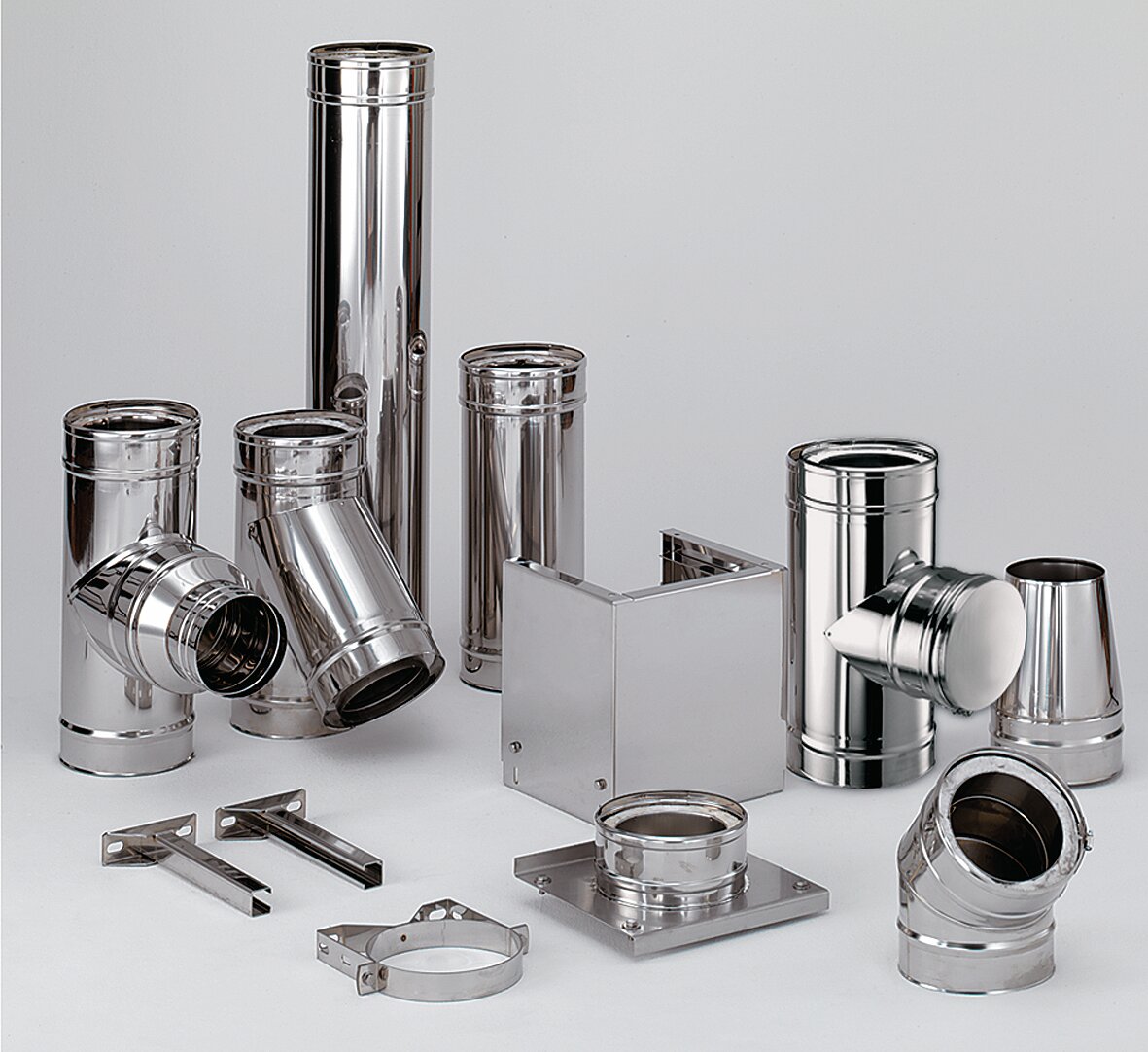

Lightweight double-walled construction minimizes structural loads on walls and foundations. Designed for rapid push-fit connection with a comprehensive range of cantilever arms, floor bases, and structural components.
Lightweight double-walled construction minimizes structural loads on walls and foundations. Designed for rapid push-fit connection with a comprehensive range of cantilever arms, floor bases, and structural components.
Installation Efficiency
Prefabricated component system requiring zero on-site welding or insulation wrapping.
Prefabricated component system requiring zero on-site welding or insulation wrapping.
Gallery (Pictures & Videos)
Further interesting content
ICS 5000 - High-pressure-tight exhaust system
The perfect stainless steel flue gas solution when it comes to negative & positive pressures of up to 5000 Pa and high flue gas temperatures.
PRIMA PLUS - Steel system for refurbishment
A refurbishment system for existing stainless steel fireplaces. It is specially designed for oil and gas fireplaces.
ME - The single-walled exhaust system
A modular single-walled exhaust air & gas flue system made of stainless steel. It is suitable for refurbishments, ventilation, boilers, etc.
Details & Services
Find out more about the details and services for the ICS chimney, such as the structure, detailed technical data or suitable services.
The system structure
The double-walled flue gas system ICS consists of a stainless steel outer casing and a stainless steel inner pipe, between which thermal insulation is integrated. The clamping band is also optionally available as a static clamping band. This means that planning up to 3 m free-standing after the last lateral support is possible without any problems.
Technical data
| Basic data (dimensions, weight & co.) | |
Diameter (internal) |
80 - 700 mm |
Diameter (external) |
130 - 750 mm |
Wall thickness per diameter (internal) |
0,5 - 1,0 mm |
Insulation thickness per diameter |
25 / 50 mm |
Wall thickness per diameter (outside) |
0,5 - 0,7 mm |
Weight per diameter |
4,4 - 22,4 kg/m |
| Application | |
Flue gas temperature (dry) |
≤ 600 °C |
Material (Inner liner) |
Material no.: 1.4404 |
Material (Insulation) |
Mineral fibre |
Material (Outer case) |
Material no.: 1.4301 |
Thermal resistance by insulation thickness |
0,37 - 0,56 m²K/W |
| General product features | |
Operating |
Dry, Humid, Negative pressure (N), Positive pressure (P-H) |
Room sealed |
No |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
Condensing boiler technology, Low temperature technology, Conventional heating technology |
