ICS - DOUBLE WALL INSULATED - STAINLESS STEEL CHIMNEY SYSTEM

ICS

ICS (Insulated Chimney System) is a double-walled stainless steel exhaust system with continuous thermal insulation in a handy element design and with a low overall weight. The innovative chimney system is suitable for all fuels and can be used with oil and gas fireplaces under both negative and positive pressure and is at the same time insensitive to moisture.

Contact & Advice

Highlights

ICS is a double-walled stainless steel flue gas system with continuous thermal insulation in a handy element design and with a low overall weight. ICS is suitable for all fuels and can be used with oil and gas fireplaces in both negative and positive pressure and is also insensitive to moisture. When used with solid fuels, ICS is compatible in negative pressure and for dry operation (Combustion chamber).

EI120 & Energy efficient

The EI120 certified ICS chimney system is characterized by uninterrupted thermal insulation. Mineral wool insulation with high temperature resistance serves as effective insulation. The thermal insulation and inner wall thickness are also available in different thicknesses upon request.

Functional

The double-walled flue gas system in element design with integrated thermal insulation is suitable for all fuels and for oil and gas fireplaces both in negative and positive pressure and is also insensitive to moisture. When used with solid fuels, ICS can be used in negative pressure and for dry operation. The stainless steel flue gas system ICS can be used indoors and outdoors. It is particularly optimized for retrofitting - for single and multi-family homes, conservatories and commercial buildings.

Simple installation & safe operation

The connection system with plug-in sleeve connection and integrated clamping straps with double beading ensures quick and secure installation thanks to the double screw connection. No thermal insulation or welding work is required on site. The surface temperature is very low and the handy sizes with a low weight are very stable but still easy to install.

Guaranteed quality

In the production of the ICS system, emphasis is placed on using only the highest quality materials and precision. The inner pipe is butt-welded throughout and made of stainless steel. It offers protection against corrosion and soot fires. The outer pipe of the ICS chimney is made of highly polished stainless steel and absorbs the static loads. We therefore guarantee that the system will function for 10 years.

Further interesting content

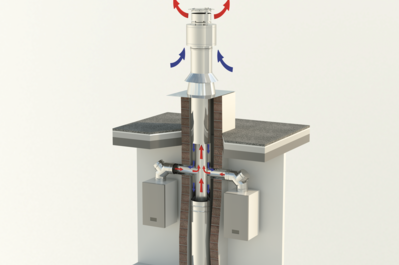

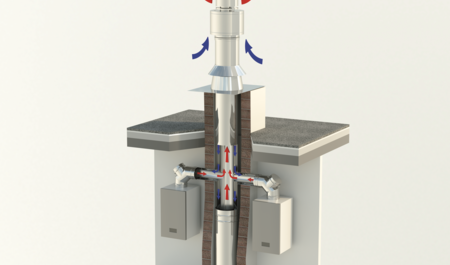

CLV

Schiedel's ideal solution for high-quality CLV renovation.

View

HP 5000 - The high-pressure-tight exhaust gas line

Perfect for all industrial exhaust gas applications up to an overpressure of 5,000 Pa.

View

MF

Suitable for ovens, industrial systems, tiled stoves, condensing boilers, low-temperature and solid fuel fireplaces.

View

Food processing

Producing food on a large scale requires constant temperatures and hygienic conditions. Discover how Schiedel helps engineer and provide the right flue gas solution for food producers.

View

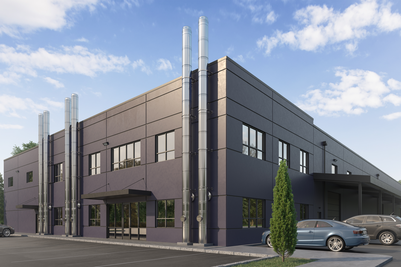

Commercial Heating

Heat and the right climate in buildings is more than providing comfort. Discover Schiedel's chimney solutions for heating.

View

Residential Heating

Residential buildings are heated with various types of fuels and combustion devices. At Schiedel we help large Architects, Builders and Installers specify, design and install their residential heating flue gas systems.

View

Details & Services

Find out more about the details and services for the ICS flue gas system, such as the structure, detailed technical data or suitable services. You also have the option of downloading flyers or brochures about the product.

Hover to zoom

The system structure

The double-walled flue gas system ICS consists of a stainless steel outer casing and a stainless steel inner pipe, between which thermal insulation is integrated. ICS can both be installed as the connecting chimney system, as well as the main chimney system. The clamping band is also optionally available as a static clamping band. This means that planning up to 3 m free-standing after the last lateral support is possible without any problems.

Technical data

Basic data (dimensions, weight & co.)
Diameter (internal)	80 - 700 mm
Diameter (external)	130 - 750 mm
Wall thickness per diameter (internal)	0,5 - 1,0 mm
Insulation thickness per diameter	25 / 50 mm
Wall thickness per diameter (outside)	0,5 - 0,7 mm
Weight per diameter	4,4 - 22,4 kg/m

Application
Flue gas temperature (dry)	≤ 600 °C
Material (Inner liner)	Material No.: 1.4404
Material (Insulation)	Mineral fibre
Material (Outer case)	Material No.: 1.4301
Thermal resistance (m²k/w) by insulation thickness	0,37 - 0,56 m²K/W

General product features
Performance features	T600 N1 W V2-L50050, T600 N1 D V3-L50050, T400 N1 W V2-L50050, T400 N1 D V3-L50050, T200 N1 W V2-L50050, T200 P1 W V2-L50050
Operating	Dry, Humid, Negative pressure (N), Positive pressure (P-H)
Room sealed	No
Occupation	Single, Multi
Suitable for passive house	No
Heating technology	Condensing boiler technology, Low temperature technology, Conventional heating technology
