AD - DOUBLE WALL INSULATED - STAINLESS STEEL CHIMNEY SYSTEM
The double-walled stainless steel flue gas system with continuous thermal insulation in a handy element design. Suitable for all fuels.
Haven't found the right product yet? Use our online assistant to find the right product for your needs.
Shipbuilding and offshore platforms have many industry-specific challenges. At Schiedel we engineer exhaust solutions to meet your industry specific needs.

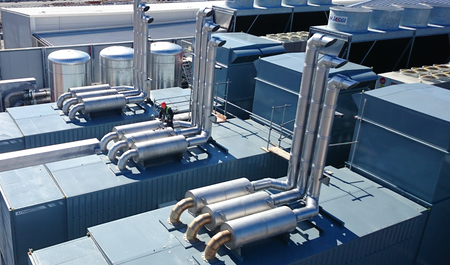

You want to get the maximum return from generator sets and CHP applications. This also includes proper disposal of gases and other emissions. While architects and building owners are not interested in exhausts and annoying installation processes. At Schiedel we can help you engineer the perfect exhaust solution!
Mitigate risks on the critical project path and elevate your project success with Schiedel's Center of Engineering. Our expert team ensures precision and efficiency, safeguarding your flue gas project from start to finish.
Looking for expert guidance? Connect with our knowledgeable sales consultants in your region to find the perfect solution for your needs!
| Basic data (dimensions, weight & co.) | |
Wall thickness per diameter (internal) |
0,5 mm - 0,8 mm mm |
Insulation thickness per diameter |
37,5 mm - 50 mm mm |
| Application | |
Flue gas temperature (dry) |
≤ 600 °C |
Operating temperature under negative pressure |
≤ 1600 °C |
Operating pressure |
≤ 5000 Pa |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
Material (Outer case) |
AISI 304-EN 1.4301 |
| General product features | |
Operating |
Dry, Negative pressure (N), Positive pressure (P-H) |
Room sealed |
No |
Area of application |
Heating systems, Generators, Emergency generators |
Occupation |
Single, Multi |
Suitable for passive house |
No |
Heating technology |
High pressure 5000 Pa, Low temperature technology, Conventional heating technology |
