Prima Smooth - For wood and multifuel appliances!
Aesthetic precision for connecting pipes & chimney relining

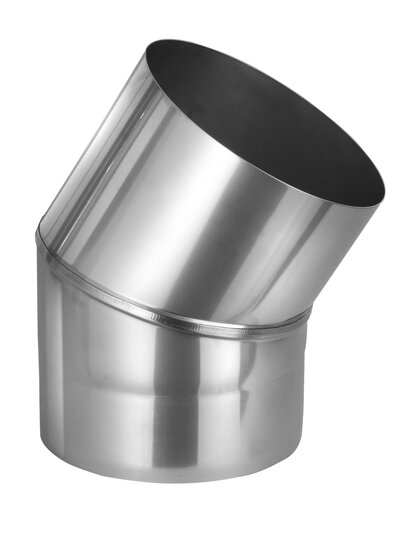

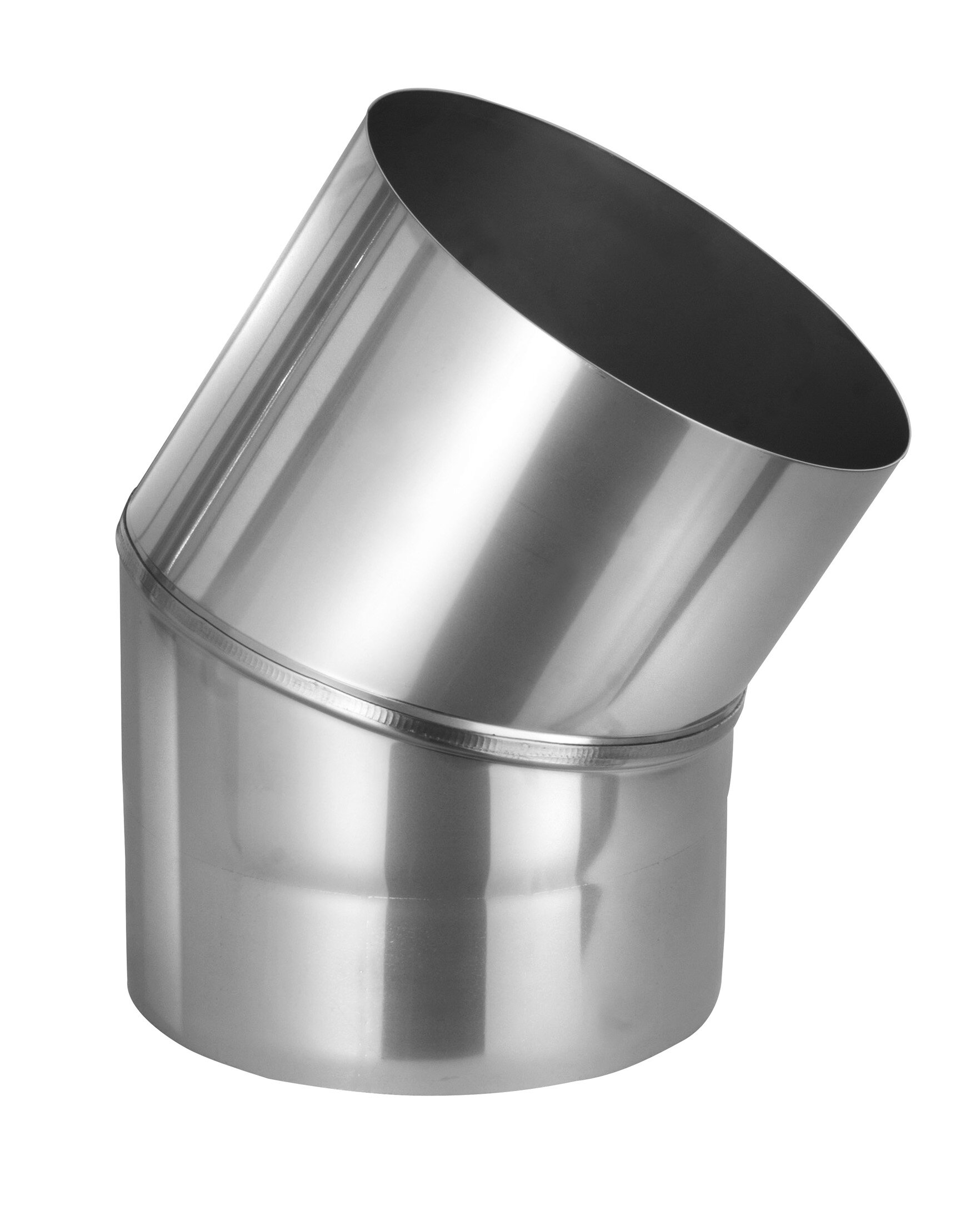

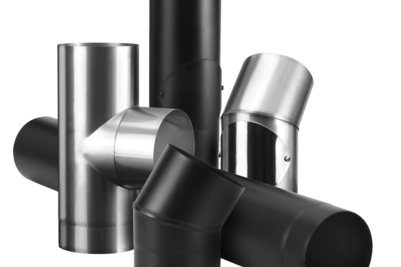

Schiedel PRIMA SMOOTH is a lightweight, single-wall stainless steel system designed for continuous high-temperature operation up to 600°C under negative pressure conditions.
Manufactured from corrosion-tested stainless steel in 0.6 mm and 1.0 mm wall thickness options, it serves two primary installation functions:

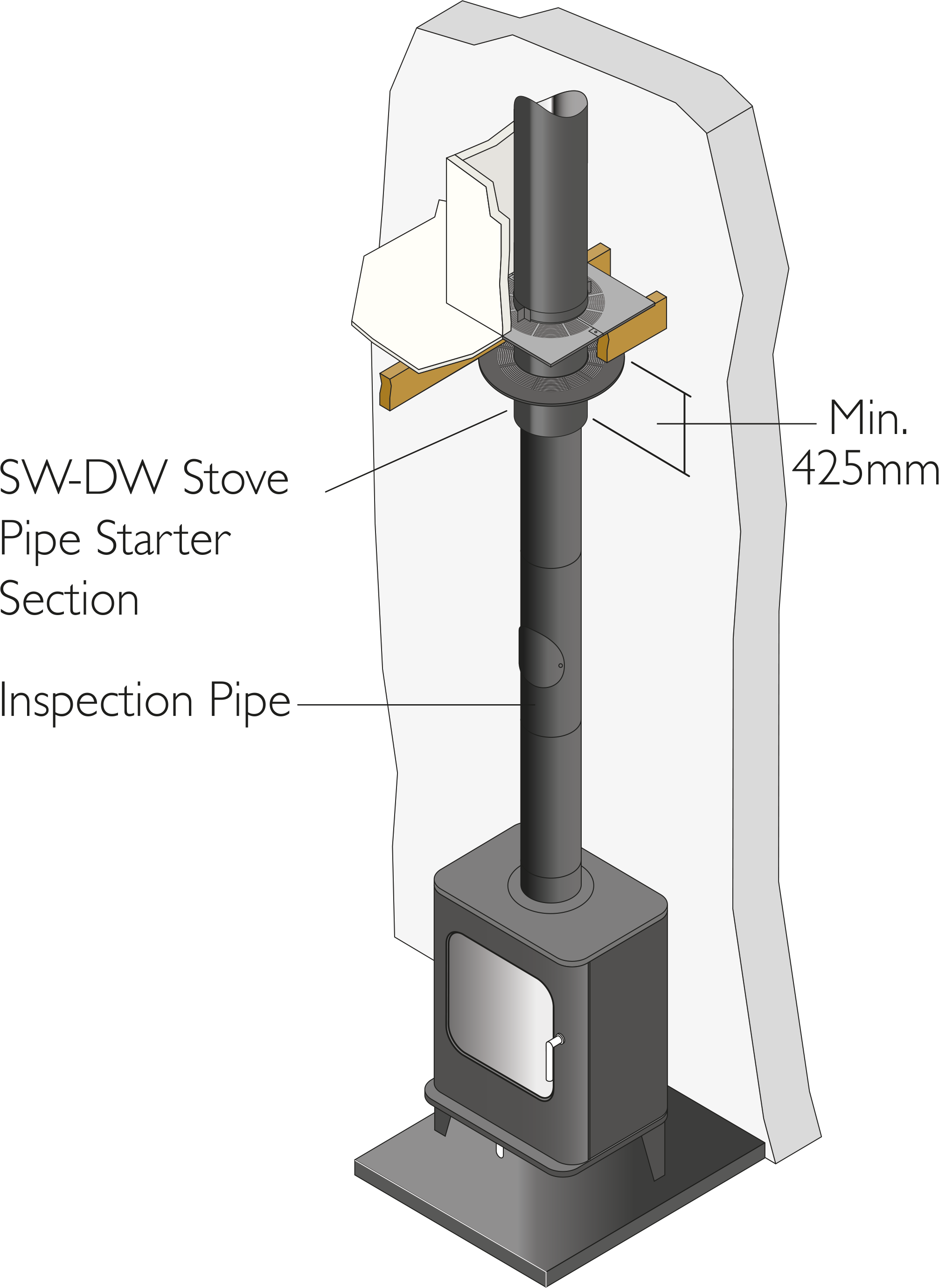

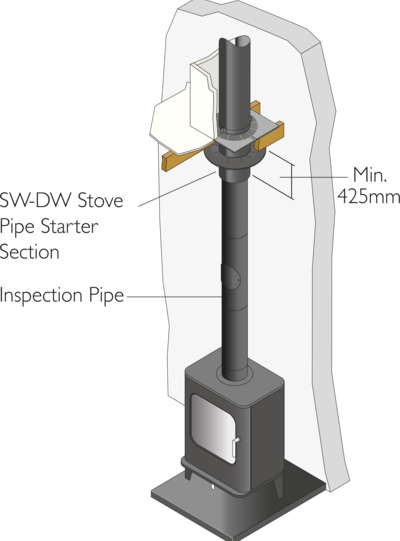

- Connecting flue pipe: Serves as a visually refined connecting pipe between a stove/appliance and a twin-wall system chimney.
- Rigid chimney liner: Functions as a durable alternative to flexible stainless steel liners when relining straight masonry chimneys.
Quicklinks
Premium material quality
Built from corrosion-tested AISI 316L stainless steel to withstand high-temperature flue gas environments and acidic combustion byproducts from wood and multi-fuel stoves
Built from corrosion-tested AISI 316L stainless steel to withstand high-temperature flue gas environments and acidic combustion byproducts from wood and multi-fuel stoves
Precision flush-joint engineering
Male spigot and female socket jointing details are designed to create a smooth visual profile at connection joints, enhancing interior aesthetic integration.
Male spigot and female socket jointing details are designed to create a smooth visual profile at connection joints, enhancing interior aesthetic integration.
Architectural surface finishes
Available in natural matt AISI 316L stainless steel or factory-painted matt black utilizing a specialized high-temperature resistant coating.
Available in natural matt AISI 316L stainless steel or factory-painted matt black utilizing a specialized high-temperature resistant coating.
Gallery (Images & Videos)
Further interesting content
PERMETER SMOOTH - A designed chimney
It not only provides a spectacular finish to your chimney thanks to its clampless design, but also combines design & technology in one component.
TECNOFLEX - Flexible steel chimney system
Stainless steel system for inserting bent chimneys. Easy and quick installation without extensive demolition work.
ICID PLUS - A twin wall flue chimney system
ICID PLUS is a twin wall flue chimney system and durable, Corrosion-Resistant Solution for Stoves, Biomass, and Condensing Boilers.
Details & Services

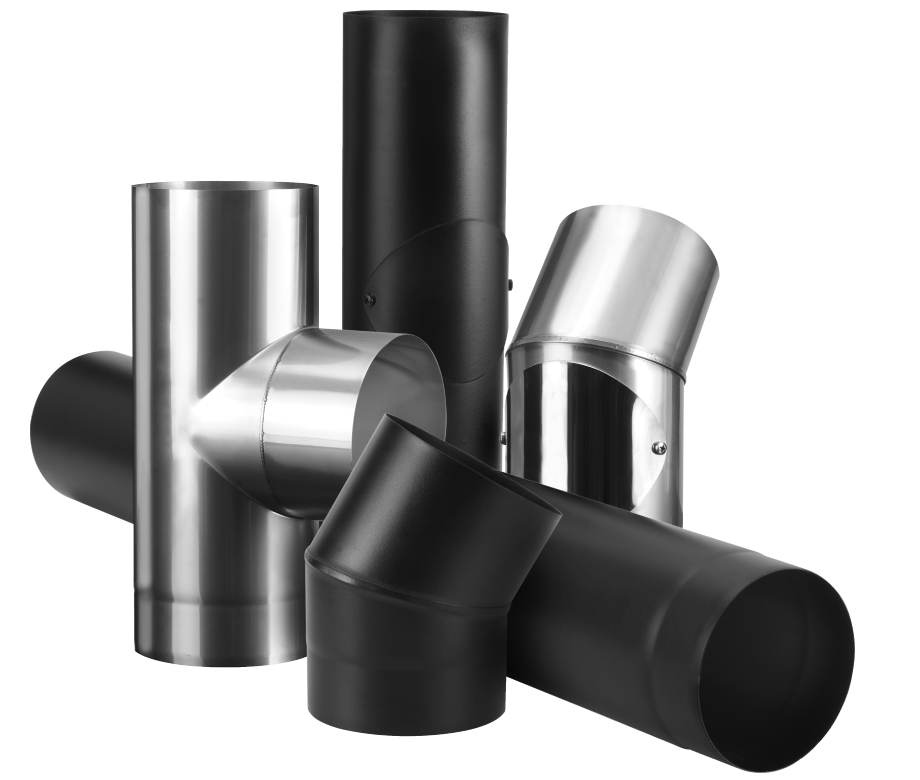

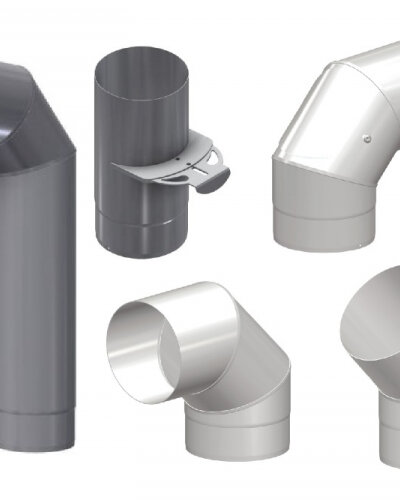

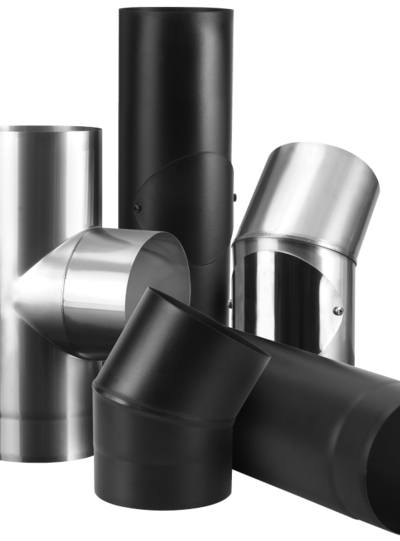

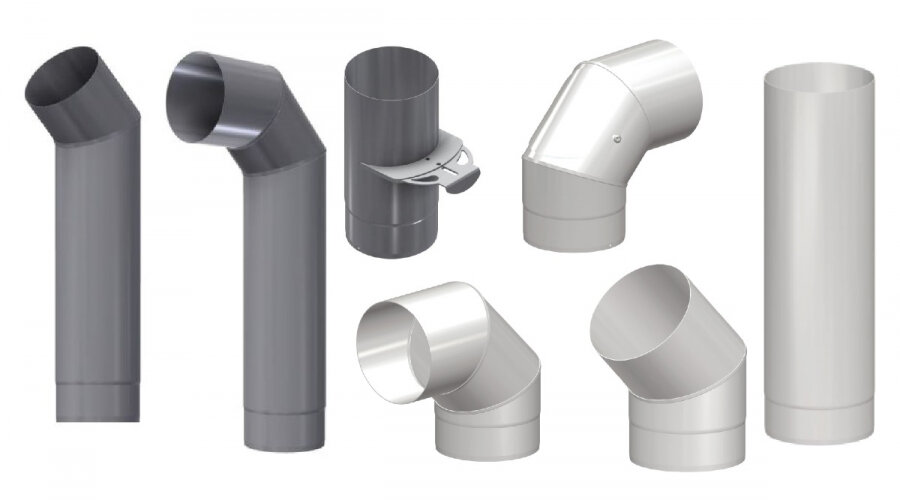

The structure of the system
Technical data
| Basic data (dimensions, weight & co.) | |
Diameter (internal) |
125/ 150/ 180/ 200 mm |
Wall thickness per diameter (internal) |
0,6/ 1 mm |
| Application | |
Material (Outer case) |
AISI 316L |
| General product features | |
Room sealed |
No |
Occupation |
Single |
Suitable for passive house |
Yes |
Heating technology |
Conventional heating technology |
Notes |
Approvals (Connecting Flue Pipe): BS EN1856-2 TÜV 0036 CPR 9195 033; T600 N1 D V2 L50060 G; T600 N1 D V2 L50100 G Approvals (Chimney Liner): BS EN1856-2 TÜV 0036 CPR 9195 033; T600 N1 D V2 L50060 G; T600 N1 D V2 L50100 G |
