TRIPLELOCK

Triplelock Plus is a single wall stainless steel flexible flue liner designed for atmospheric gas and kerosene appliances where the flue gas temperature does not exceed 260°C. Diameter range Triplelock plus 100 – 200mm.

Highlights

Triplelock Plus is a single wall stainless steel flexible flue liner designed for atmospheric gas and kerosene appliances where the flue gas temperature does not exceed 260°C. Diameter range Triplelock plus 100 – 200mm.

  • High corrosion resistance.
  • Deep corrugations for high crush resistance and better flexibility when installing.
  • Strong seam construction resists the rigours of pulling the liner into place during construction.
  • Made from corrosion-resistant 316L stainless steel.
  • Leak resistant construction due to dovetail folded seam.

Atmospheric gas appliances where the flue gas temperature does not exceed 260°C.

Kerosene appliances where the flue gas temperature does not exceed 260°C.

TRIPLELOCK PLUS

Triplelock Plus is CE Certified to BS EN 1856-2 TÜV 0036 CPR 9195 043 with designations:

Triplelock Plus can be used in lined chimney on dry applications

T200 P1 W V2 L50010 O
T300 N1 W V2 L50010 O

Flue boxes

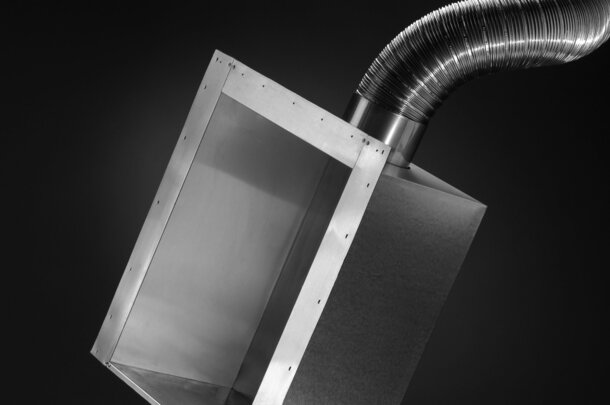

Flue box liner suitable for gas appliances.
