SIH - The classic insulating chimney
Product details
Modular 3 layer insulated chimney system Traditionally, chimneys are completely constructed on site with separate components sourced from a number of suppliers and most likely from a variation of manufacturers. By contrast the Schiedel Swift System offers modular, prefabricated units to speed construction and facilitate consistent quality standards.

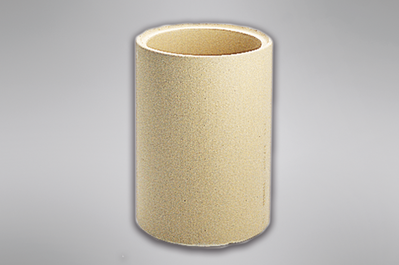

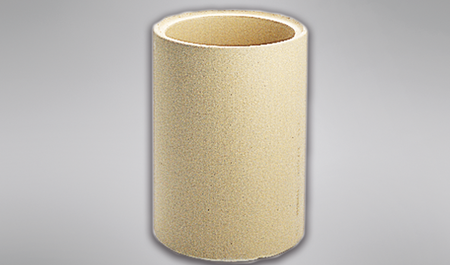

1st layer
A high quality flue liner made of fireclay, tested to EN 1457

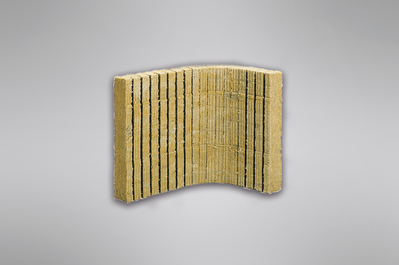

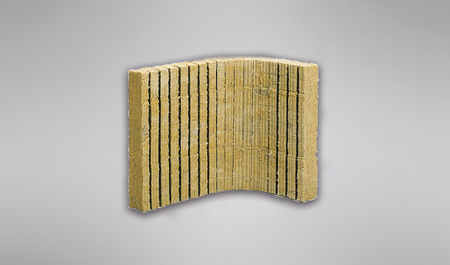

2nd layer
A flexible insulation board designed to maintain the temperature of the flue gases and allow them to pass freely up the chimney. It also allows the flue liner to expand and contract without damage.

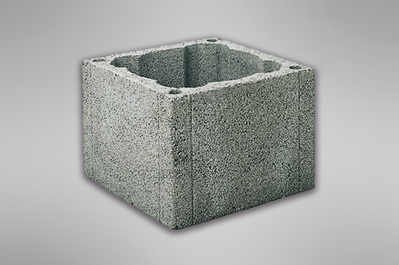

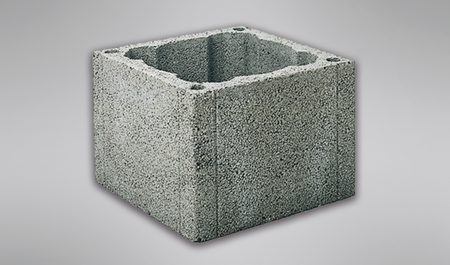

3rd layer
A lightweight chimney block which safely encases the whole system and provided additional insulation.
- Designed for speed of construction
- Suitable for Timber Frame, Steel Frame and Masonry construction. Solutions have been specifically designed to meet the requirement of timber framed construction.
- Modular units for easy assembly on site.
- Suitable for all fuels – gas, oil, solid fuels and biomass.
- Schiedel Rapid HT Cement is provided in tubes for ease of application.
- Superior Insulation – The consistency of the insulation maintains the temperature of the flue gases allowing them to pass freely up the chimney. Back filling of insulation is not required.
- The use of a chimney tray is always recommended.
- The high quality fireclay flue liner complies with the European Standard EN1457-1 & 2
Suitable for timber frame, steel frame and masonry
Suitable for all fuels: gas, oil, solid fuels and biomass.
New build homes
Renovation projects
Installation animation

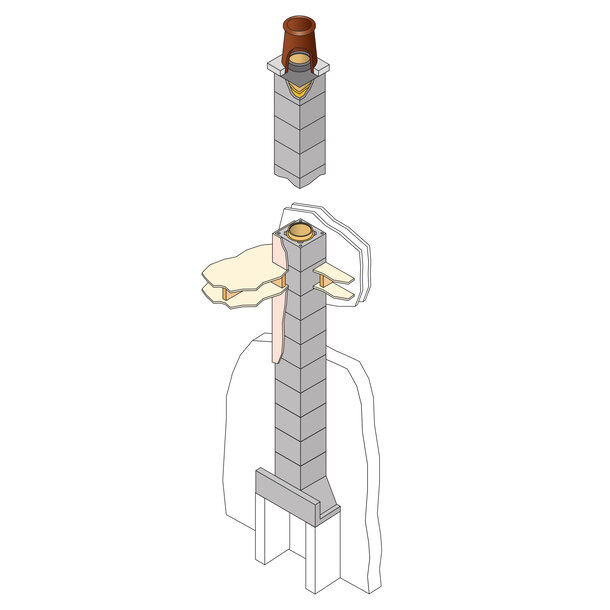

Internal open fire

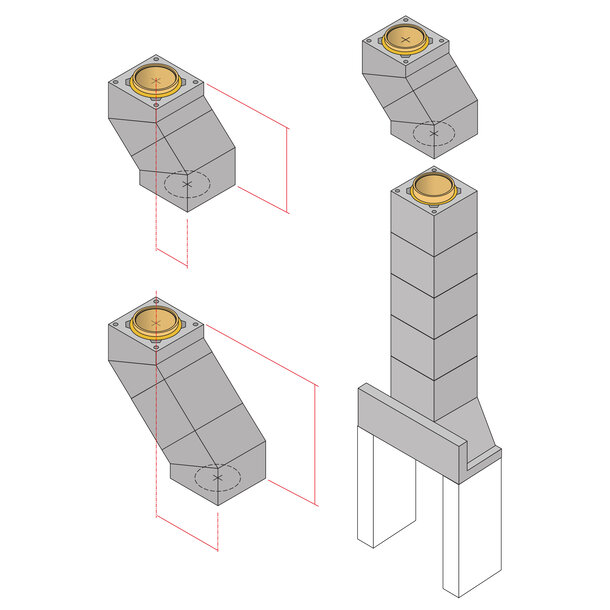

Bend and offsets
The Breast Bend The breast bend kit will allow the flue to be offset to variable lengths, subject to the diameter being used.
The Roof Space Offset Kit A combination of both Schiedel Swift and Schiedel Twin wall stainless steel flue allows an offset in the roof space without the need for constructional support.
