DOUBLE WALL ADJUSTABLE STARTER SECTION

INITIAL INSTALLATION

Where painted product is used on a high temperature application, then this must be a high temperature paint specification. See Schiedel latest ICID Plus catalogue for details of Schiedel High Temperature Paint spec.

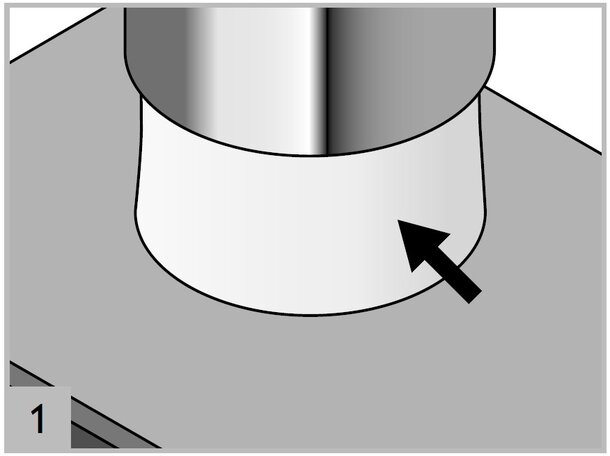

Remove loose strip of insulation and keep to one side.

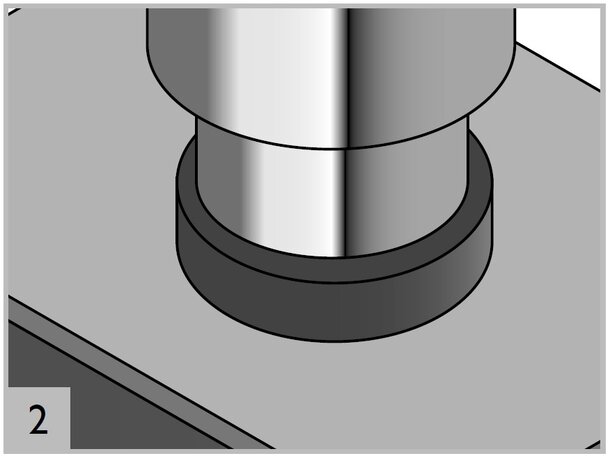

Insert male spigot of liner into the appliance spigot.

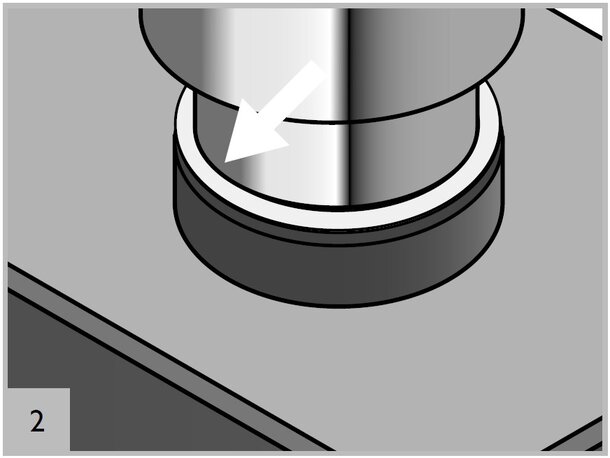

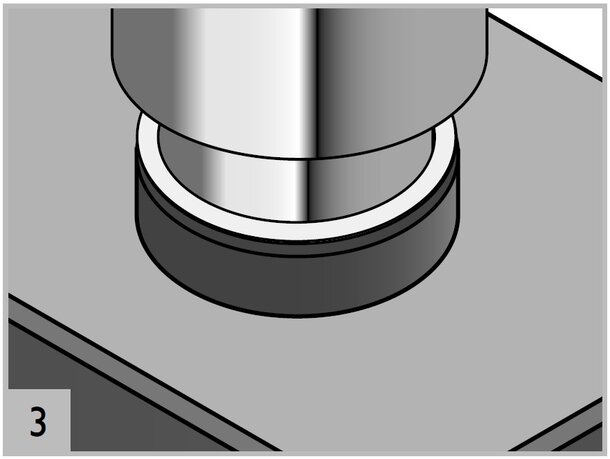

Seal using rope gasket, fire cement or similar.

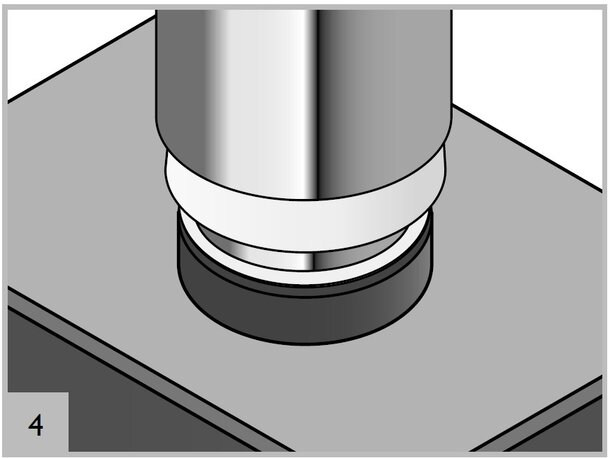

Insulate liner using the strip of insulation (see point 1) with joint to rear. Width of insulation can be trimmed to suit.

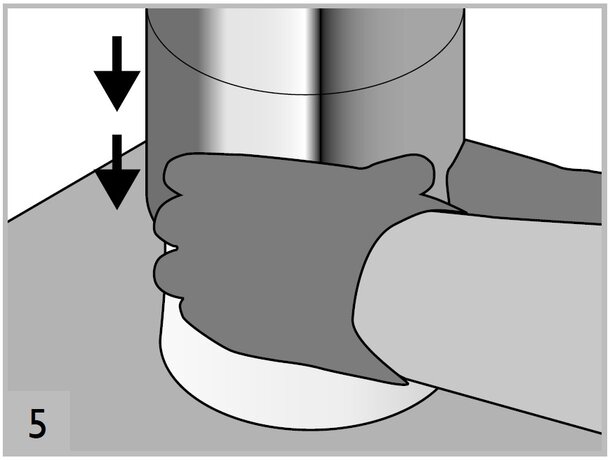

Slide adjustable case down over the insulation to cover the appliance spigot.

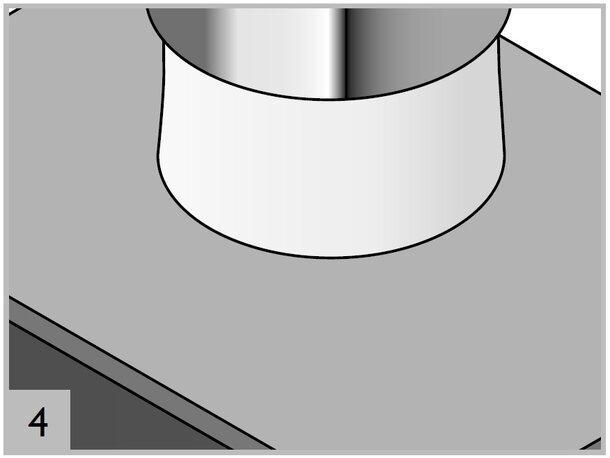

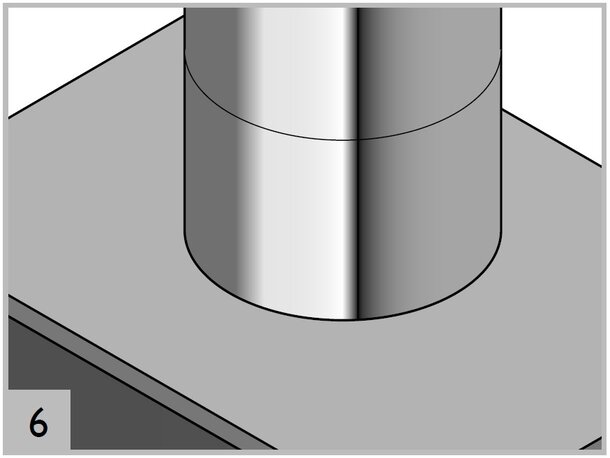

Finished installation.

REMOVAL OF STOVE FOR SERVICING

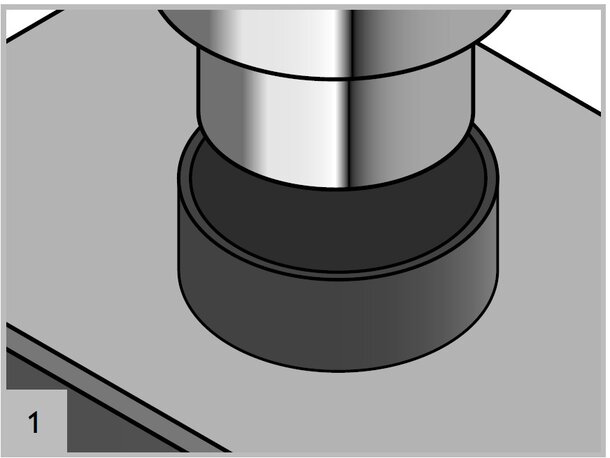

Slide adjustable case up inside the outer wall of the chimney.

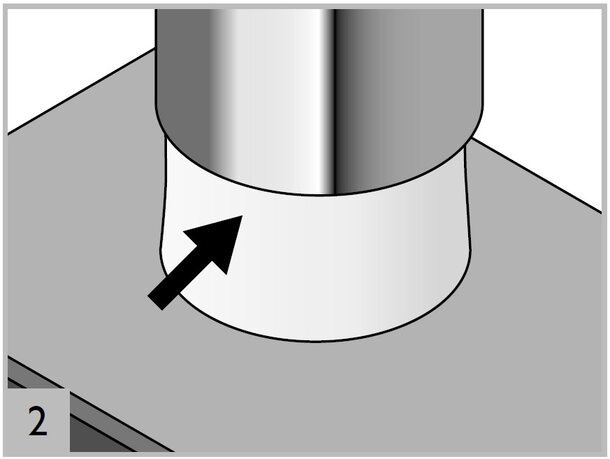

Remove two loose insulation strips and keep to one side.

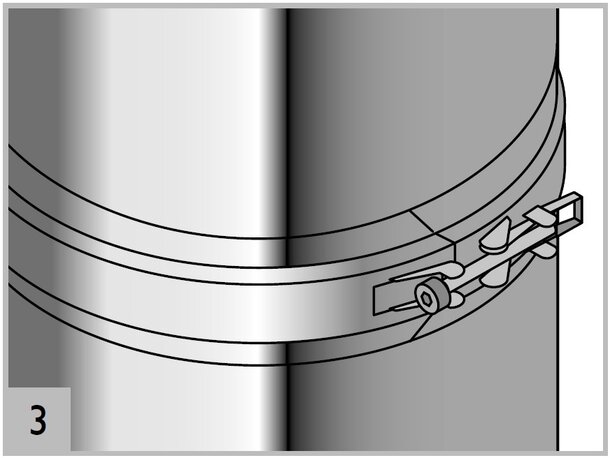

Loosen the locking band on the liner using the quick release clip (retain the locking band to one side).

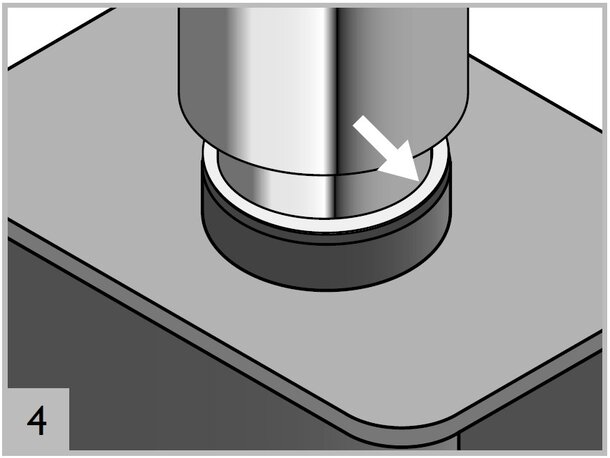

Break the fire cement seal between the appliance spigot and chimney liner.
Slide adjustable case down over the insulation to cover the appliance spigot.

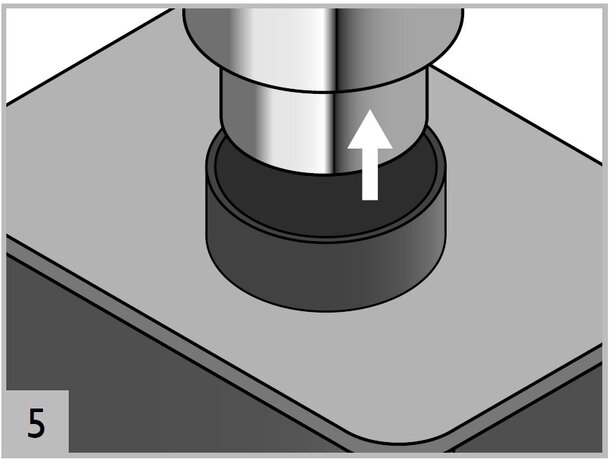

Remove the appliance.

RE-INSTALLATION OF STOVE AFTER SERVICING

Position stove spigot immediately beneath liner spigot of chimney.
Slide liner spigot down inside the appliance spigot and seal using the fire cement, rope gasket or similar.
Slide locking band into place around the joint on the liner. Now tighten the bolt on the locking band around the joint of the liner.
Position narrower strip of insulation around the locking band with joint to the rear.

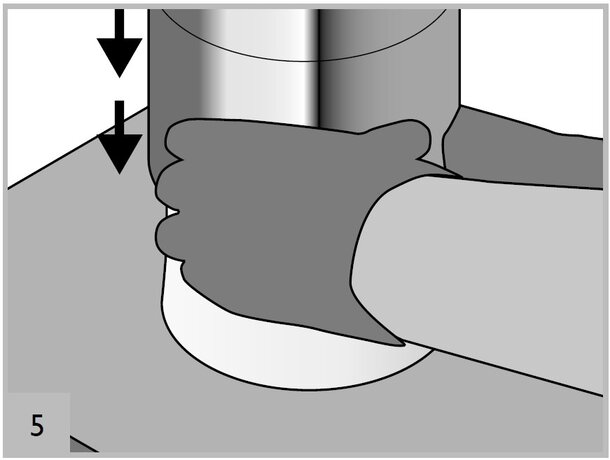

Slide adjustable cover down 5mm past insulation. Position final insulation around spigot with joint to the rear.

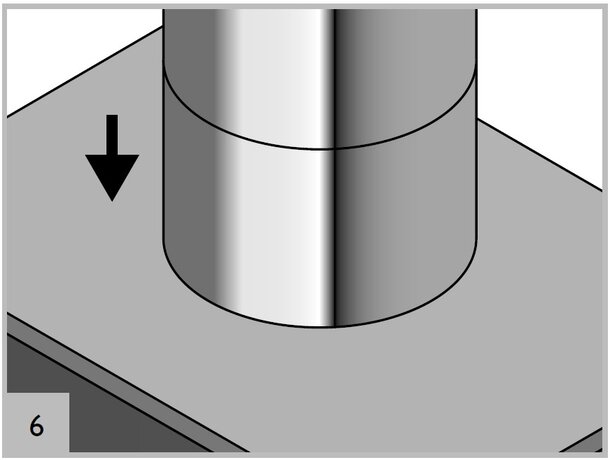

Slide adjustable case down over the insulation to cover the appliance spigot.
