CORE Twin Wall - The double-walled stainless steel chimney system
Highlights
The simple push-fit connection gives a smooth finish, with limited ridges to make the chimney system aesthetically pleasing.
Core Twin Wall features a distinctive rockwool insulation that maintains its properties even under extreme temperatures, reaching up to 1200°C.
Core Twin Wall's thermal expansion capability of up to 18mm ensures that it retains its structural integrity.
The Core Twin Wall range includes all the required accessory components for standard installations both internally and externally
- Simple push fit design with easy locking mechanism.
- Smooth design, with limited ridges.
- Excellent finish to match most appliances.
- Suitable for low and high kW stove systems.
- Safe from bottom to top, with excellent insulation and low distances to combustible.
- High quality manufacturing process and completely safe.
- Both wood and solid fuel can be used.
G60 and G50 firestop plates to allow 60mm and 50mm distance to combustibles on internal installations.
The Core Twin Wall range includes all the required accessory components for standard installations both internally and externally.
Simple push-fit installation, designed with the installer in mind.
Smooth finish with limited ridges for enhanced aesthetics.
Core Twin Wall installation examples
Non-combustible floor installation example and external example.
Chimney information and guides
Helpful sections for chimney installers
Details & Services
The simple push-fit connection with a smooth design and limited ridges. The finish is in matt black designed to match most appliances.
The structure of the system

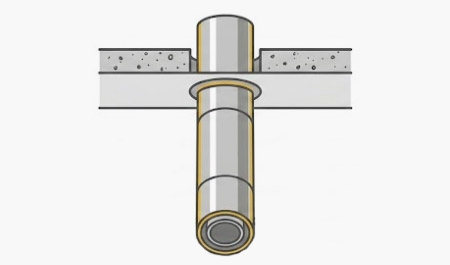

For internal routing through wood joist floors, the stove connects to a Core flue. Ventilated firestop plates are installed at each ceiling level to maintain safe clearances from combustible materials.
The system passes through the roof using flashing and terminates with a rain cap to ensure proper draw and protection.
For homes without masonry chimneys, the stove connects to a Core pipe passing through an insulated wall sleeve. Outside, a 135° Tee with cleaning access anchors the vertical flue. Secured by brackets, the chimney rises to the roofline, ending with a rain cap to ensure proper draw and weather protection.
Technical data
| Basic data (dimensions, weight & co.) | |
Diameter (internal) |
100, 130, 150 mm |
Diameter (external) |
150, 180, 200 mm |
Wall thickness per diameter (internal) |
0.4 mm |
Insulation thickness per diameter |
25 mm |
Wall thickness per diameter (outside) |
0.5 mm |
Weight per diameter |
5.8 - 8.4 kg/m |
| Application | |
Flue gas temperature (dry) |
450 °C |
Material (Inner liner) |
AISI 316L-EN 1.4404 |
Material (Insulation) |
Mineral fibre |
Material (Outer case) |
Material No.: 1.4301 |
Thermal resistance by insulation thickness |
0.37 m²K/W |
| General product features | |
Notes |
Thermal expansion: 18 mm / Max. length free standing: 2.0 m above the last support / Max. support spacing (lateral support): 3.0 m |
Technical data
Fuel type
Wood, solid fuel, gas, oil
Diameter (internal)
100, 130, 150
Diameter (external)
150, 180, 200
Liner thickness (internal)
0.4mm
Insulation thickness per diameter
25mm
Weight per diameter (kg/m)
5.8 kg /m - 8.4 kg/m
Outer case thickness
0.5mm
Flue gas temp (dry)
≤ 450°C
Liner material
High grade stainless steel liner 316 liner
Outer case finish
304 stainless steel - painted black (RAL 9005)
Insulation type
High density, rockwool insulation
Thermal expansion
18mm
Max. length free standing
2.0 m above the last support
Max. support spacing (lateral support)
3.0 m
Average thermal resistance (200°C)
0.37m2 k/W
