Prima Smooth

PRIMA SMOOTH

Prima Smooth is a lightweight precision engineered product, designed for use on atmospheric wood burning and multifuel appliances with continuous operating temperatures of up to 600C.

Highlights

Prima Smooth is a lightweight precision engineered product, designed for use on atmospheric wood burning and multifuel appliances with continuous operating temperatures of up to 600C.



The joints in the pipe are designed to give a smooth visual appearance and Prima Smooth is available in two surface finishes:



  • Matt 316L grade stainless steel.
  • Matt black painted 316L grade stainless steel using a special high temperature resistant paint.

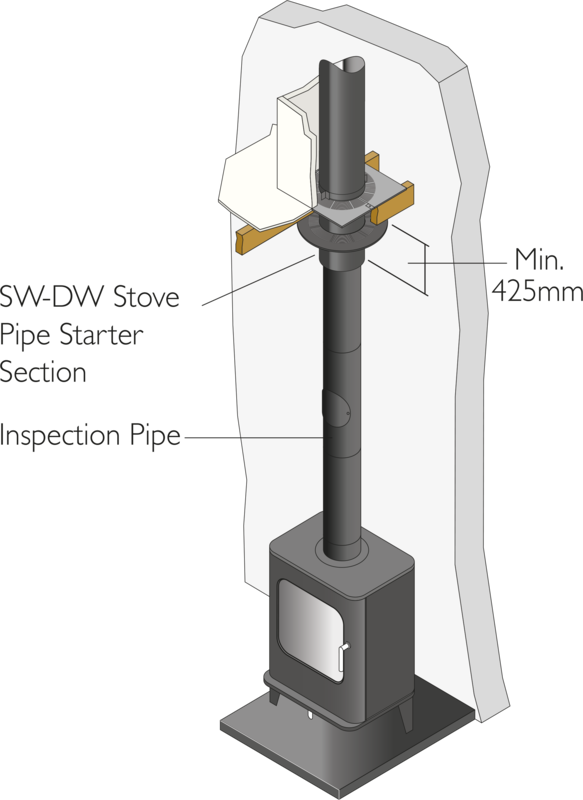

Connecting flue pipe

Steel liner for re-lining an existing chimney.

Ventilation / extraction

Approvals

High Temperature Applications

Connecting Flue Pipe


BS EN1856-2 TÜV 0036 CPR 9195 029
T600 N1 W V2 L50060 GXX NM
T600 N1 W V2 L50100 GXX NM
(XX = 3 x Ø Int. of Pipe)

Chimney Liner

BS EN1856-2 TÜV 0036 CPR 9195 033

T600 N1 D V2 L50060 G
T600 N1 D V2 L50100 G
