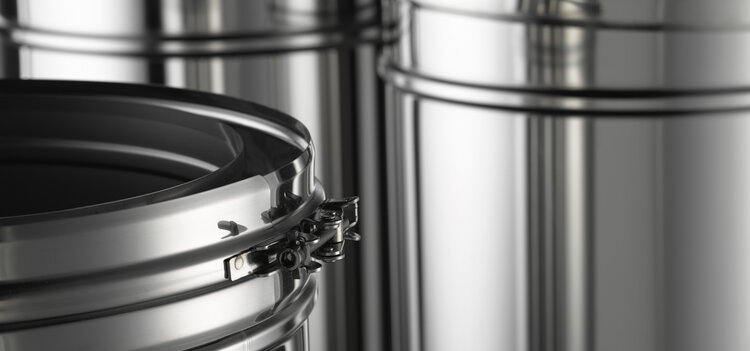

Fire rating of the highest standard with ICS 25 and ICS 50.

(Washington, Tyne and Wear, 07. February 2021) Fire resistance testing takes place in a large furnace, where test specimens are installed in exactly same way they would be installed in a building. It is necessary to precisely define and perform all the details of attaching the samples to the supporting structure, including the type wall bands and fastening material.

Fire resistance tests of ICS chimneys

The most important detail is the passage of the chimney through the wall or the ceiling, where it is necessary to define the insulating expansion layer, fire protection plates and their fixing to the structure including all sealing material. The size and length of the tested samples, the position of the openings and their distance from the walls are precisely defined by the standard.

The testing procedure is such that the specimens in the furnace are exposed to a simulated fire, where the temperature rises according to the standard fire curve. During testing, the temperature is measured with a large number of thermocouples at defined locations on the specimens.

More related content

News

Health & Safety Award Presentation

We were delighted to have reached a significant Health & Safety milestone in the Schiedel Washington plant, recently, of 3,000 days with no ...

Read now

News

Ground-breaking ceremony for new international steel plant in Okup Wielki/Poland

To further cope with the strong demands in the Schiedel steel business, the Schiedel Group has decided to build a completely new and efficie...

Read now

News

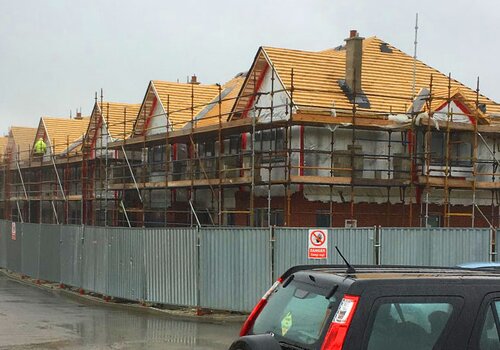

Energy efficient new-build homes using Schiedel Swift Air
